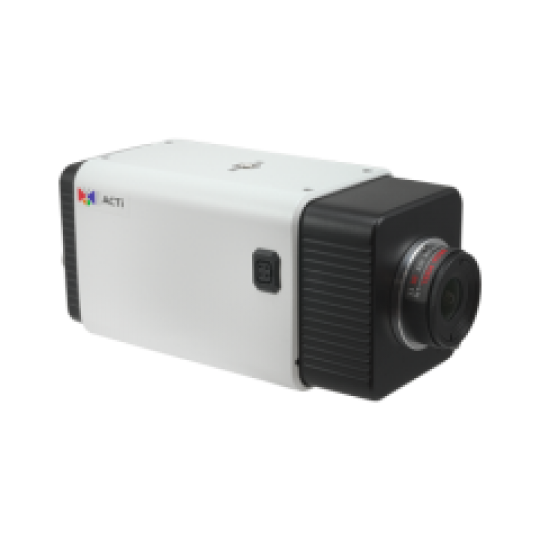

A29
- 2 Megapixel (Support 120fps@1080P)
- Fixed Lens, f2.8mm/F2.0
- Extreme WDR (142dB)
- Super wide angle
- Event trigger, response and notification
THE FEATURES
the SPECIFICATIONS
| Product Type | Box |
|---|---|
| Maximum Resolution | 2MP |
| Product Application | Face, People and Car Detection |
| Application Environment | Indoor/Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.8 " |
| Effective Pixels | 1945(H) X 1097(V) (2.13 MP) |
| Day / Night | Yes |
| Low Light Sensitivity | Extreme |
| Minimum Illumination | Color: 0.007 lux (30 IRE); B/W: 0.001 lux |
| Mechanical IR Cut Filter | Yes |
| Electronic Shutter | 1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode) |
| Horizontal Resolution (TV Lines) | 1000 TVL |
| S/N Ratio | 75 dB |
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F2.0 |
| Iris | Fixed iris |
| Focus | Auto back focus |
| Lens Mount | CS Mount (interchangeable lens for DC-Iris and P-Iris) |
| Horizontal Viewing Angle | 108.6° |
