4KCHANGER-TC2

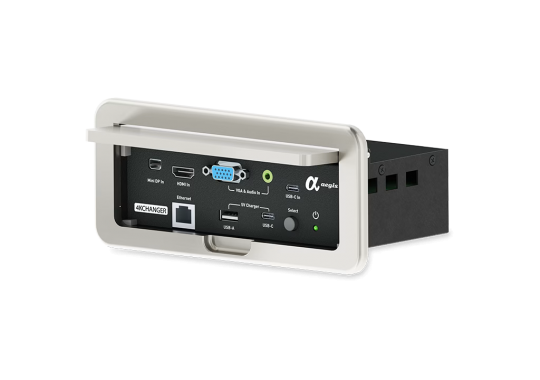

The aegis 4KCHANGER-TC2 is a professional-grade embedded desktop signal switcher featuring a 30m Cat6 HDMI® signal extension. It supports HDMI®, Mini DisplayPort, VGA, and Type-C inputs, converting them into a unified HDMI® output with a maximum resolution of 4K@60Hz.Equipped with intelligent source auto-detection and a one-touch switching button, the system also offers Ethernet passthrough, POC (Power over Cable) support, and USB charging functionality. Designed with a sleek pop-up mechanism, it seamlessly integrates into desks, podiums, and other conference setups, delivering a high-performance AV solution for modern meeting spaces.

DOWNLOAD BROCHURE / DATASHEET

THE FEATURES

4KCHANGER-TC2

◎ Supports Full HD 1080p@60Hz, 3D, and 4Kx2K@60Hz HDMI® signal transmission.
◎ Utilizes audio-video conversion technology, enabling uncompressed and zero-latency transmission of Mini DP, HDMI®, VGA+3.5mm, and USB 3.1 Type-C audio-video signals.
◎ Supports USB 2.0 BC1.2 and USB 3.1 Type-C mobile device charging.
◎ Supports RJ45 passthrough functionality.
◎ Features smart video signal switching with auto-detection and button input selection capabilities.
◎ Supports HDCP, CEC, and 24-bit deep color.
◎ Supports 4K 60Hz UHD signal extension up to 5M and 1080P 60Hz FHD signal extension up to 10M via HDMI® 2.0 cable.
◎ Supports POC (Power Over Cable) remote power supply functionality.
◎ Supports uncompressed LPCM audio and compressed audio formats including DTS-HD, Dolby TrueHD, and Dolby Digital.

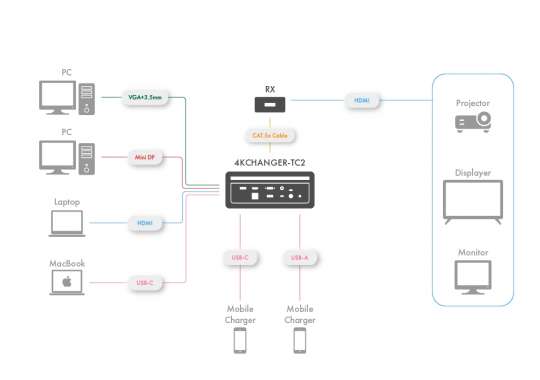

Application Diagram

the SPECIFICATIONS

High-Fidelity Audio Encoding

2.2
Input Ports

Mini DisplayPort X 1
HDMI® X 1
VGA X 1
Audio X 1 -3.5mm Stereo Jack
USB 3.1 C X 1
Ethernet X 1 – RJ45 at Cat.5e/6 ( Pass Thru)
Output Ports

RJ45 X 1
USB 2.0 A X 1 -5V/ 1.5 Amp -BC 1.2
USB 3.1 C X 1- 5V/ 2.0 Amp
Ethernet X 1 – RJ45 at Cat.5e/6 ( Pass Thru)
Control Ports

Select button X 1 –
Power Supply

24VDC / 1.5 Amp (US / UK / AUS / EU Power Plug)
Power Consumption

36 W – Max.
Chassis Material

Metal
Operating Temperature

0℃ -40℃  / 32℉  -104℉
Storage Temperature

-15℃ -55℃ / 5℉ -131℉
Humidity

5 – 85% RH (Non-Condensing)
Dimensions ( L × W × H )

7.2 in (184 mm) X 3.1 in (80 mm) X 3.6 in (90 mm)
Weight

736 g
