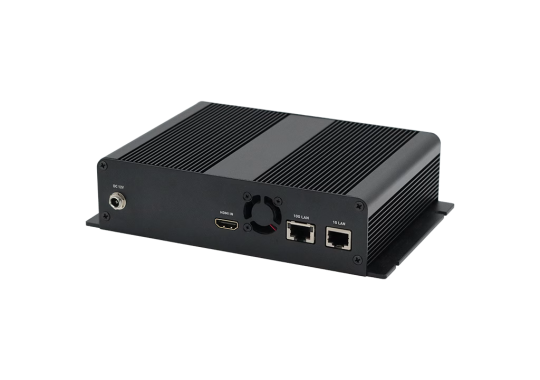

4KPROIP-CAT-EN-U
The aegis 4KPROIP KVM network series includes the 4KPROIP-CAT-EN-U encoder and 4KPROIP-CAT-DE-U decoder. The aegis 4KPROIP-CAT-EN-U encoder is the core component of a professional-grade IP video transmission system (with built-in KVM functionality), supporting UHD 4K60Hz (4:4:4) video processing capabilities. It connects to video sources via an HDMI® interface, converts the signals into IP format through Cat.6 network cables, and transmits them via a 10Gb Ethernet switch, achieving uncompressed, zero-latency high-quality audio and video transmission. A single network cable supports a maximum transmission distance of up to 100 meters. The system integrates USB 2.0 KVM functionality, allowing remote operation of keyboards and mice, and is equipped with a 3.5mm audio interface, bidirectional infrared, and RS232 control functions. Through an intuitive web interface, users can easily configure matrix switching, video walls, and multi-view displays. Combined with video scaling functionality, it provides a highly flexible audio-visual management solution for professional applications such as commercial exhibitions, educational venues, and surveillance systems.
THE FEATURES
4KPROIP-CAT-EN-U
◎ Supports 4K60Hz ultra-high-definition resolution.
◎ Supports delay-free, lossless and uncompressed HDMI® video transmission.
◎ Supports remote desktop control of host devices.
◎ Supports USB mouse & keyboard control and data capture functionality.
◎ Bidirectional IR pass-through function.
◎ Bidirectional RS232 control support.
◎ 3.5mm audio input/output support.
◎ Resolution scaling function.
◎ Cat 6 network cable transmission up to 100M.
◎ Supports virtual matrix, video wall, multi-view display, and video extender functions.
◎ User-friendly GUI control interface, accessible via smartphone, tablet, laptop, and PC.

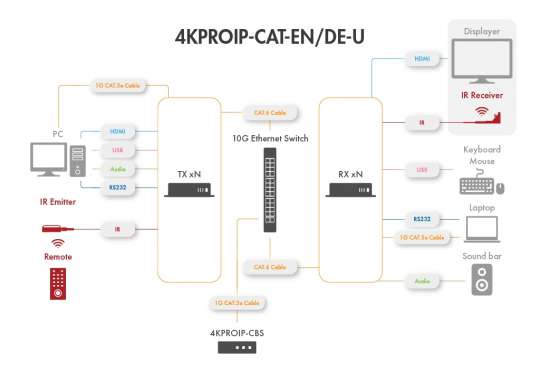

Application Diagram
the SPECIFICATIONS
| Power Supply | Input: 100-240VAC 50-60Hz Output:12V / 3A |
|---|---|
| Inputs | HDMI® x1, IR x2, Audio x1, 1G RJ45 x1, RS232 x1, |
| Outputs | 10G LAN Port x1 |
| USB A | - |
| USB B | 480Mbps USB 2.0 |
| HDMI® | HDMI®2.0 with HDP |
| HDCP | HDCP 2.2 Compliant |
| RS 232 | 115Baud Rate (Pass-through) |
| IR | 30kHz-60kHz (Bi-directional) |
| Compression | Uncompressed |
| Latency | Zero |
| Resolution | 4K/60hz 4:4:4 |
| Weight | 1420g |
| Operating Temperature | -20℃ to +55℃ (-68℉ to 131℉) |
| Storage Temperature | -30℃ to +70℃ (-86℉ to 158℉) |
| Humidity | 10% to 90% |
| Dimensions (L × W × H) | 204x133x48mm |
| Enclosure | Aluminum Housing |
