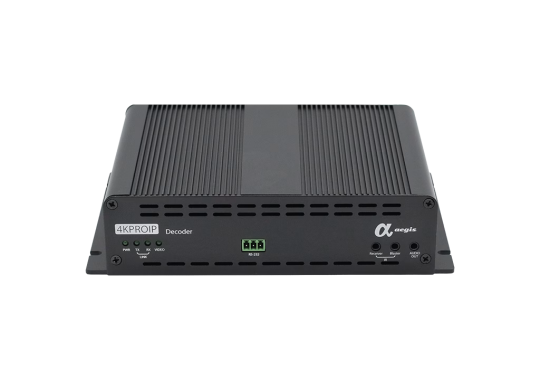

4KPROIP-FOC-DE
The aegis 4KPROIP fiber series includes the 4KPROIP-FOC-EN encoder and 4KPROIP-FOC-DE decoder. The aegis 4KPROIP-FOC-DE fiber decoder is the receiving component of a professional-grade long-distance IP video transmission system, supporting UHD 4K60Hz (4:4:4) video processing. It receives signals from a 10Gb Ethernet switch via a fiber optic interface, decodes them, and outputs them through HDMI® to display devices, achieving uncompressed, zero-latency high-quality audio and video playback. A single fiber optic cable supports ultra-long-distance transmission of up to 20 kilometers. The system provides bidirectional infrared and RS232 control functions, enabling remote control of the video source equipment at the encoder end. Through a web interface, users can flexibly configure matrix switching, video walls, and multi-view displays. Combined with video scaling functionality, it is particularly suitable for professional application scenarios requiring long-distance transmission, such as large venues, inter-building connections, educational campuses, and corporate headquarters.
THE FEATURES
4KPROIP-FOC-DE
◎ Supports 4K60Hz ultra-high-definition resolution.
◎ Supports delay-free, lossless and uncompressed HDMI® video transmission.
◎ Bidirectional IR pass-through function.
◎ Bidirectional RS232 control support.
◎ 3.5mm audio input/output support.
◎ Resolution scaling function.
◎ Cat 6 network cable transmission up to 100M.
◎ Supports virtual matrix, video wall, multi-view display, and video extender functions.
◎ User-friendly GUI control interface, accessible via smartphone, tablet, laptop, and PC.

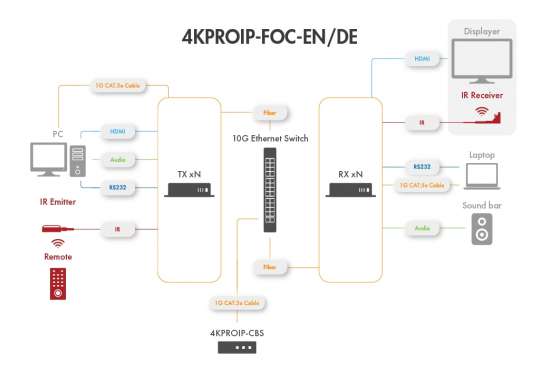

Application Diagram
the SPECIFICATIONS
| Power Supply | Input: 100-240VAC 50-60Hz Output:12V / 3A |
|---|---|
| Inputs | 10G Fiber Port SFP x 1 |
| Outputs | HDMI® x1, IR x2, Audio x1, 1G RJ45 x1, RS232 x1, |
| HDMI® | HDMI® 2.0 with HDP |
| HDCP | HDCP 2.2 Compliant |
| RS 232 | 115Baud Rate (Pass-through) |
| IR | 30kHz-60kHz (Bi-directional) |
| Compression | Uncompressed |
| Latency | Zero |
| Resolution | 4K/60hz 4:4:4 |
| Weight | 1420g |
| Operating Temperature | -20℃ to +55℃ (-68℉ to 131℉) |
| Storage Temperature | -30℃ to +70℃ (-86℉ to 158℉) |
| Humidity | 10% to 90% |
| Dimensions (L × W × H) | 204x133x48mm |
| Enclosure | Aluminum Housing |
