ACC-BTN-1000

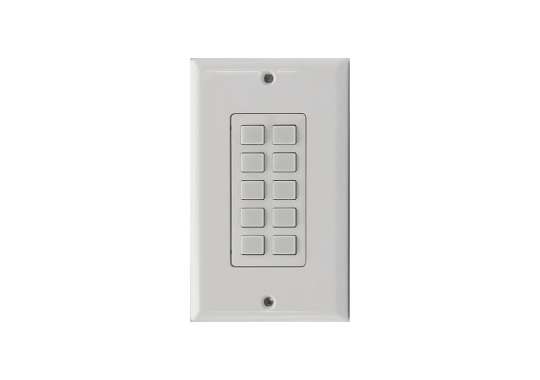

Aegis ACC-BTN-1000 is a 10-button IP keypad controller that enables easy control of wall-mounted presentation switchers, matrices, and HDMI® over IP solutions via TCP/IP or RS232 protocols. Supporting PoE power supply and featuring a single-module design, it can be flexibly installed on walls or desktops. With 10 customizable button settings, users can execute preset control commands with a single press to achieve scene switching and device control. Paired with an intuitive web interface, users can easily complete system configuration.
THE FEATURES
ACC-BTN-1000
◎ 10 customizable programmable buttons.
◎ Supports PoE (Power over Ethernet).
◎ Supports TCP/IP network control.
◎ Supports RS232 serial control.
◎ Single-module compact design.
◎ Supports scene preset functions.
◎ Single-key multiple command trigger.
◎ Intuitive user interface design.
◎ Compatible with multiple device integration.
◎ Supports batch command execution.

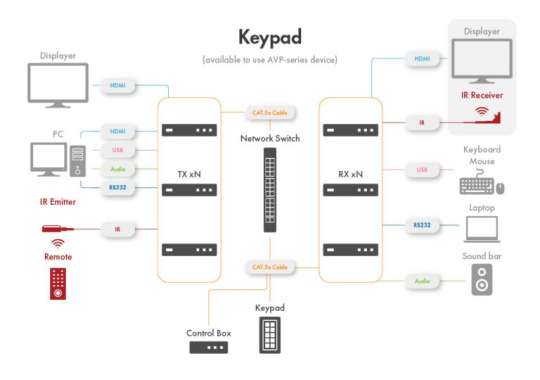

Application Diagram
Available to use AVP - Series Device
the SPECIFICATIONS

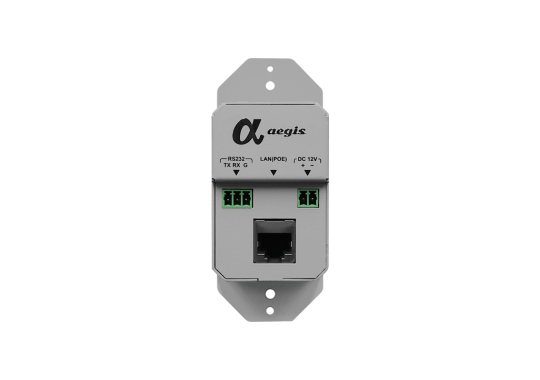

| Input Interface | 1 x LAN(PoE) 10/100Mbps 1 x RS232 1 x DC |
|---|---|
| Buttons | 10 x Button |
| Control Method | Web GUI |
| Operating Temperature / Humidity | 0°C ~ +45°C(32°F ~ 113°F) 10% ~ 90%，No condensation |
| Storage Temperature / Humidity | -20°C ~ +70°C (-4°F ~ 158°F) 10% ~ 90%，No condensation |
| ESD Protection | Human Body Model (HBM)： · ±8kV (Air gap discharge) · ±4kV (Contact discharge |
| Power Supply | DC 12V0.5A / PoE |
| Power Consumption | Max 1.3W |
| Dimensions (W x L x D) | 45 x 105.6 x 36 mm |
| Net Weight | 0.18kg |
