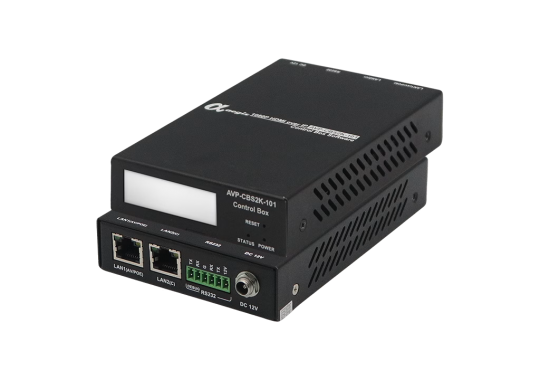

AVP-CBS2K-101
Aegis AVP-CBS2K-101 is a 1080P over IP control box, designed for multimedia matrix systems and video wall applications. Featuring a dual-network interface architecture, it is equipped with 10/100Mbps Ethernet ports and an RS232 serial port, offering versatile control solutions. Through an intuitive web user interface, Telnet protocol, or third-party control devices, system management can be easily achieved. The device supports intelligent recognition, automatically detecting and displaying encoders and decoders on the network. With the Console management tool, it enables real-time matrix switching and video wall configuration. Supporting PoE power supply technology, it simplifies installation and wiring requirements. Built with a rugged industrial-grade design, it incorporates comprehensive surge and ESD protection, ensuring stable system operation.
THE FEATURES
AVP-CBS2K-101
Video Processing
◎ Supports matrix and video wall applications.
◎ Supports automatic video layout configuration.
◎ Supports scene presets and recall functions.
◎ Real-time video preview.
System Features
◎ Automatic detection and identification of encoders and decoders.
◎ Supports device status monitoring and management.

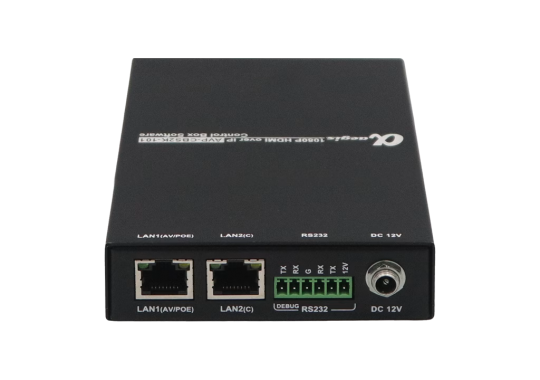

Connectivity
◎ Dual network ports (RJ45) design.
◎ Supports AV control and PoE power supply (LAN1).
◎ Supports system management functions (LAN2).
◎ Dual RS232 serial ports (for debugging/control purposes).
◎ 12V/0.5A power output (RS232).
◎ Front panel reset button.
Control Method
◎ Supports Telnet remote control protocol.
◎ Supports HTTP/HTTPS secure connection.
◎ Provides API commands for third-party control system integration.
◎ Control interfaces: Web GUI / Windows Software / Conductor / iPad App (AGS-iTouch).

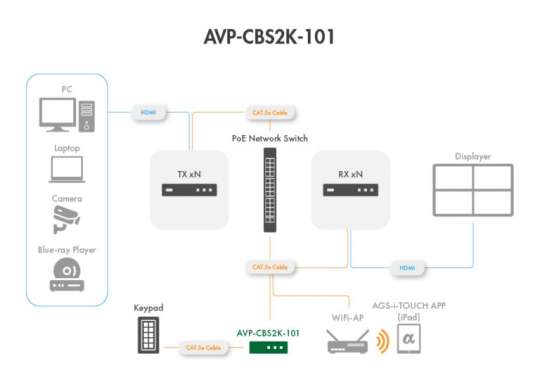

Application Diagram
the SPECIFICATIONS
| Input / Output Ports | 1 x LAN(AV/PoE) 10/100Mbps 1 x LAN2(C) 10/100Mpbs 1 x RS232 |
|---|---|
| Indicator Light | 1 x Status LED 1 x Power LED |
| Buttons | 1 x Reset Button |
| Control Method | Web GUI / Telnet / RS232 / Windows Software / Conductor / iPad App (AGS-iTouch) |
| Operating Temperature / Humidity | 32°F ~ 113°F (0°C ~ +45°C) 10% ~ 90%，No condensation |
| Storage Temperature / Humidity | -4°F ~ 158°F (-20°C ~ +70°C) 10% ~ 90%，No condensation |
| ESD Protection | Human Body Model (HBM)： ±8kV (Air gap discharge) ±4kV (Contact discharge |
| Power Supply | DC 12V1A |
| Power Consumption | Max 10.5W |
| Dimensions (W × L × D) | 93.2 mm x 138.7 mm x 26 mm |
| Net Weight | 0.38kg |
