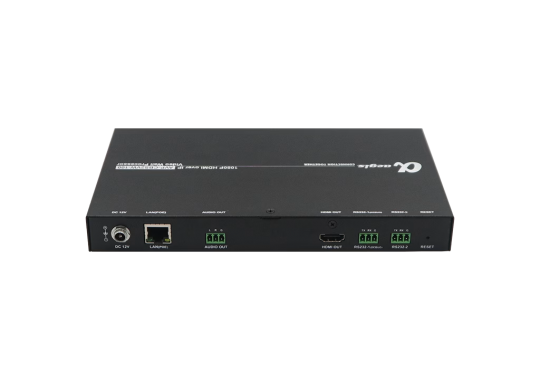

AVP-CBS2VW-100
The aegis AVP-CBS2VW-100 is a multi-window processor that supports decoding and stacking up to 9 channels of 1920×1080P@60Hz video streams simultaneously. It can output processed video over a network to an H.264 decoder while also providing a local HDMI output interface.Utilizing advanced window processing technology, it enables flexible multi-window layouts and real-time display functions. Equipped with dual RS-232 serial ports and an Ethernet interface, it offers versatile control solutions. The built-in auto-scaler ensures high-quality video output, and it supports PoE power supply technology.
THE FEATURES
AVP-CBS2VW-100
Video Processing
◎ Supports processing of 9 channels of 1080P 60Hz video streams.
◎ Supports PoP (Picture on Picture).
◎ Supports H.264/MPEG-4 AVC decoding.
◎ Built-in auto scaling processing engine.
◎ Flexible window layout configuration.
◎ Supports automatic detection Auto Scaler.
System Features
◎ Automatic IP/DHCP/Static IP configuration.
◎ Supports multi-window preset scenes.
◎ System status LED indicator.
◎ ID button for quick information display.
Connectivity
◎ 1 network input interface.
◎ Supports HDMI® local output.
◎ Dual RS232 serial ports (for debugging/control purposes).
◎ Supports PoE power supply technology.
◎ Supports audio output.
Control Method
◎ Supports Telnet remote control protocol.
◎ Supports CEC display power management.
◎ Provides API commands for third-party control system integration.
◎ Control interfaces: Conductor / iPad Software (AGS-iTouch).

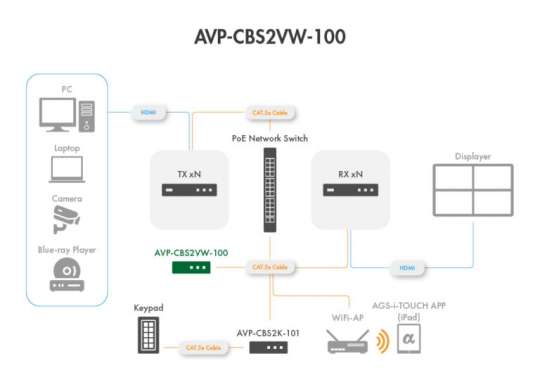

Application Diagram
the SPECIFICATIONS
| Video input interface | 1 x LAN |
|---|---|
| Video input signal type | H.264/MPEG-4 AVC |
| Input Resolution | Up to 1080P@60Hz |
| Video output interface | 1 x HDMI® |
| Video output signal type | HDMI® |
| Output Resolution | HDMI: Up to 1080P@60Hz; IP Stream: Up to 1080P@60Hz |
| Audio Output Interface | 3-pin Phoenix Connector |
| Audio output signal type | Unbalanced Stereo |
| Control Method | Ethernet, RS232 |
| Operating Temperature & Humidity | 0°C ~ +45°C (+32°F ~ +113°F)/10% ~ 90%, Non-condensing |
| Storage Temperature & Humidity | -20°C ~ +70°C (-4°F ~ +158°F)/10% ~ 90%, Non-condensing |
| Power Supply | 12V 1A |
| Maximum Power Consumption | 8.3W |
| ESD Protection | Human Body Model (HBM)： ±8kV (Air gap discharge) ±4kV (Contact discharge |
| Dimensions (W × H × D) | 220mm x 25mm x 130.2mm/8.7” x 1” x 5.1” |
| Net Weight (excluding accessories) | Approx. 0.78kg |
