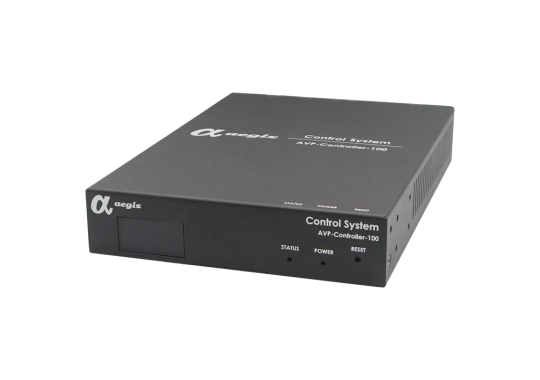

AVP-Controller-100
Aegis AVP-Controller-100 is a 4K over IP control box featuring a dual-network interface architecture, providing comprehensive video matrix and video wall control capabilities. With its intuitive user interface, users can easily configure various video layouts and manage scheduling tasks. The device supports a redundancy mechanism, ensuring uninterrupted connectivity by automatically switching to a backup system in case of a primary controller failure. Equipped with an LCD display, RS-232 serial port, and dual PoE network interfaces, it offers robust system integration capabilities. When paired with professional management software, it enables diverse functionalities, including matrix switching, video wall control, and scheduled task management, delivering a complete and flexible video control solution.
THE FEATURES
AVP-Controller-100
Video Processing
◎ Supports matrix and video wall applications.
◎ Multiple scene preset functions.
◎ Device video stream control.
◎ Active video source search.
System Features
◎ System redundancy mechanism.
◎ Scheduled playback function.
◎ LCD screen for real-time status display.
◎ System operation monitoring and management.
Connectivity
◎ Dual 1G network ports.
◎ Supports dual PoE power supply.
◎ Single RS232 serial port (for control purposes).
◎ System reset button.
Control Method
◎ Supports Telnet remote control protocol.
◎ Supports HTTP/HTTPS secure connection.
◎ Supports SSH encrypted communication protocol.
◎ Supports CEC display power management.
◎ User permission management.
◎ Provides API commands for third-party control system integration.
◎ Control interfaces: Web GUI / Windows Software / Mac Software / iPad App (AGS i-Touch+).

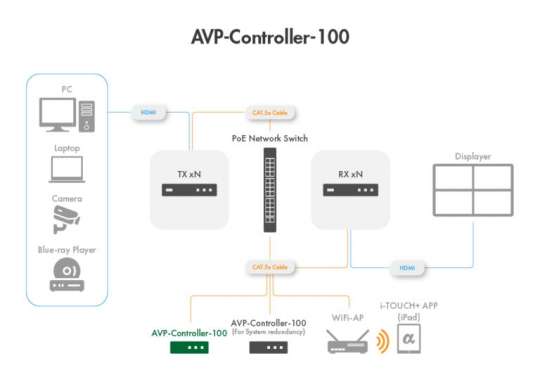

Application Diagram
the SPECIFICATIONS
| I/O Interface | 1 x LAN1 (PoE) (10/100/1000Mbps) |
|---|---|
| LED | 1 x Status LED |
| Buttons | 1 × Reset Button |
| Control Method | LAN (Web GUI & Telnet |
| Power Supply | DC 12V3A |
| Operating Temperature | 0°C ~ +60°C (32°F ~ 113°F), 10% ~ 90% (non-condensing) |
| Storage Temperature | -20°C ~ +70°C (-4°F ~ 140°F), 10% ~ 90% (non-condensing) |
| ESD Protection | Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) |
| Dimensions (W × L × D) | 139 mm x 190 mm x 32 mm |
| Outer Box Dimensions (W × L × D) | 248 mm x 195 mm x 95 mm |
| Weight | 0.99 kg / 2.19 lbs |
