AVP-Controller-101

Aegis AVP-Controller-101 is a 4K over IP control box with integrated environmental control capabilities. Featuring a dual-network interface architecture, it provides comprehensive video matrix and video wall control functionalities. The device integrates multiple environmental control interfaces, including RS232, RS485, I/O, relay, and infrared, offering flexible connectivity with various external devices to achieve full-scale field control. With an intuitive user interface, users can easily configure multiple video layouts and manage scheduling tasks. The device also supports a redundancy mechanism, automatically switching to a backup system in case of primary controller failure, ensuring uninterrupted connectivity.

DOWNLOAD BROCHURE / DATASHEET

THE FEATURES

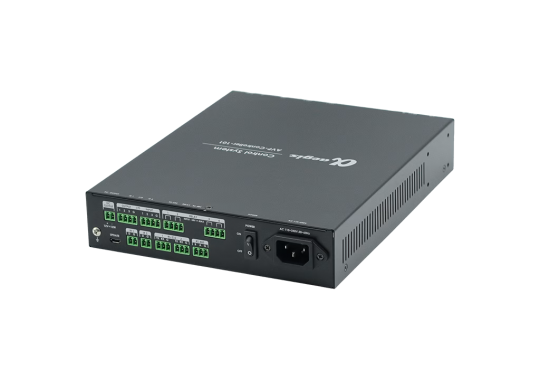

AVP-Controller-101

Video Processing
◎ Supports matrix and video wall applications.
◎ Multiple scene preset functions.
◎ Device video stream control.
◎ Active video source search.

System Features
◎ System redundancy mechanism.
◎ Scheduled playback function.
◎ LCD screen for real-time status display.
◎ System operation monitoring and management.
◎ I/O, relay, and infrared status indicators.

Connectivity
◎ Dual 1G network ports.
◎ Dual RS232 / Single RS485 control ports.
◎ Three digital I/O interfaces.
◎ Four relay control interfaces.
◎ Two infrared transceiver ports.
◎ System reset button.

Control Method
◎ Supports Telnet remote control protocol.
◎ Supports HTTP/HTTPS secure connection.
◎ Supports SSH encrypted communication protocol.
◎ Supports CEC display power management.
◎ User permission management.
◎ Provides API commands for third-party control system integration.
◎ Control interfaces: Web GUI / Windows Software / Mac Software / iPad App (AGS i-Touch+).

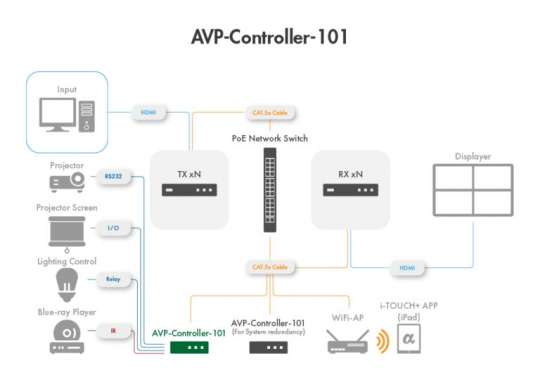

Application Diagram

the SPECIFICATIONS

I/O Interface

1 x LAN1 (10/100/1000Mbps)
1 x LAN2 (10/100/1000Mbps)
2 x RS232
1 x RS845
3 x I/O INPUT
3 x OUTPUT
4 x RELAY
2 x IR
1 x DC 12V OUT
LED

1 x Status LED
1 x Power LED
3 x I/O INPUT LED
3 x I/O OUTPUT LED
4 x RELAY LED
2 x IR LED
Buttons

1 × Reset Button
Control Method

LAN (Web GUI & Telnet)
Power Supply

AC 110-240V,50-60Hz
Operating Temperature

0°C ~ +60°C (32°F ~ 113°F), 10% ~ 90% (non-condensing)
Storage Temperature

-20°C ~ +70°C (-4°F ~ 140°F), 10% ~ 90% (non-condensing)
Surge Protection

Voltage: ±1000 V (Tested ten times respectively for the positive and negative voltages)
ESD Protection

Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge)
Dimensions (W × L × D)

139 mm x 190 mm x 32 mm
Outer Box Dimensions (W × L × D)

248 mm x 195 mm x 95 mm
Weight

0.99 kg / 2.19 lbs
