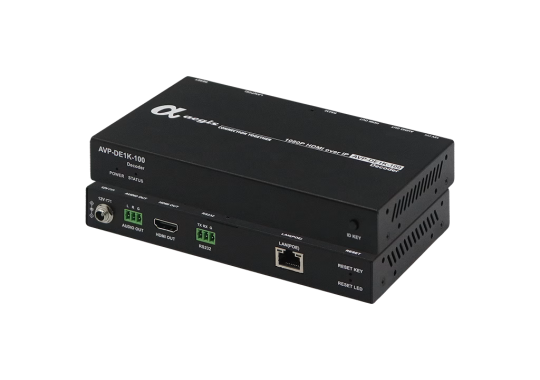

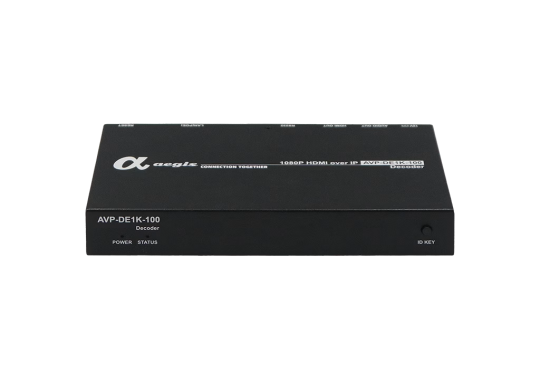

AVP-DE1K-100
The aegis AVP-DE1K-100 is a 1080P over IP decoder series that utilizes dual H.264/H.265 decoding technology to support 1080P 60Hz high-definition video processing. It provides an HDMI® 1.3 output interface and automatic EDID detection, enabling the transmission of audio, video, and control signals over a 1G network. It supports the LPCM stereo audio format and offers analog audio output. The system supports PoE power supply and 8×8 video wall configurations, and offers comprehensive management tools.
THE FEATURES
AVP-DE1K-100
Video
◎ Supports 1080P 60Hz H.264/H.265 decoding.
◎ Compatible with HDMI® 1.3 and HDCP 1.4 standards.
◎ Supports up to 8×8 video wall configuration.
◎ Supports one-to-many, many-to-one, and many-to-many applications.
◎ Supports Unicast transmission mode.
◎ Supports EDID auto-detection and adjustment.
Connectivity
◎ Supports 1G network interface transmission.
◎ Supports PoE power supply.
◎ Supports DHCP, static IP, and Auto IP configuration.
Audio
◎ Supports LPCM and MPEG4 AAC stereo.
◎ Features analog audio output.
Control
◎ Supports CEC one-touch power control.
◎ Supports RS232 serial communication.
◎ Compatible with AGS-TAP Lite Windows application.
◎ Compatible with AGS-TAP Lite Android application.
Transmission
◎ Integrates reception of video/audio/RS232 control signals over IP networks.

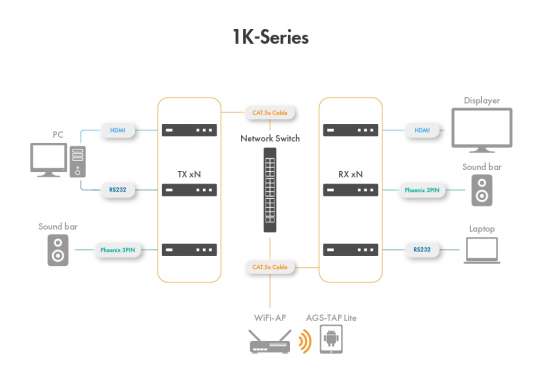

Application Diagram
the SPECIFICATIONS
| Video Input Ports | 1 x LAN |
|---|---|
| Video Input Type | H.264/H.265 |
| Video Input Resolution | Up to 1920×1080 60Hz |
| Video Input Signal | 0.5~1.2V p-p |
| Video Output Ports | 1 x HDMI® |
| Video Output Type | HDMI® 1.3, HDCP 1.4 |
| Video Output Resolution | Up to 1920×1200 60Hz |
| Audio Input Ports | 1 x LAN |
| Audio Input Format | MPEG4 AAC |
| Audio Output Ports | 1 x Phoenix connector; 1 x HDMI® |
| Audio Output Format | LPCM/stereo |
| Control Method | 1. PC configurator (AGS-TAP Lite Windows Version). 2. Android Tablet APP ( AGS-TAP Lite Android Version). |
| ESD Protection | Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) |
| Surge Protection | Voltage: ±1kV |
| Power Supply | 12 V 1A DC |
| Power Consumption | 5W (Max.) |
| Product Dimensions | 175mm X 25mm X 100.2mm (L) 6.9in X (W) 0.98in X (H) 3.94in |
| Product Weight | 0.50kg / 1.1lbs |
| Operating Temperature | 0℃~45℃(32℉~113℉) |
| Storage Temperature | -20℃~70℃(-4℉~140℉) |
