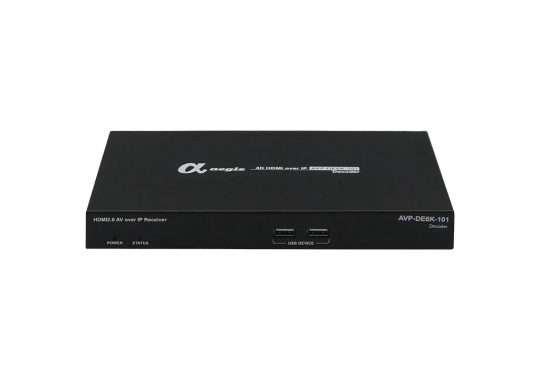

AVP-DE6K-101
The aegis AVP-DE6K-101 is a professional AV over IP 4K/60Hz series decoder, utilizing JPEG2000 decoding technology to support 4K/60Hz 4:4:4 ultra-high-definition video processing.Equipped with dual network interfaces (RJ45/SFP), it enables audio-visual and control signal transmission up to 100 meters over a 1G network. The decoder features HDMI® 2.0 output, supports multiple professional audio formats, and includes analog output and an S/PDIF audio input interface.Integrated USB KVM functionality allows for multi-host switching and roaming, while IR and RS232 communication provide direct control over display devices. The system supports PoE power supply and 16×16 video wall configurations, offering versatile management tools for seamless operation.
THE FEATURES
AVP-DE6K-101
Video
◎ Supports 4K 60Hz 4:4:4 decoding and display.
◎ Compatible with HDMI® 2.0 and HDCP 2.2/2.3 standards.
◎ Supports HDR10 and Dolby Vision.
◎ Supports up to 16×16 video wall configuration.
◎ Screen supports 90°/180°/270° rotation display.
◎ Supports one-to-many, many-to-one, and many-to-many applications.
Connectivity
◎ Dual network interfaces (RJ45/SFP) with auto-switching.
◎ Network cable (Cat.5e or above) transmission distance up to 100 meters.
◎ Supports PoE power supply.
◎ Supports DHCP, static IP, and Auto IP configuration.
Audio
◎ Supports PCM 7.1, Dolby TrueHD, Dolby Atmos, DTS HD Master, DTS:X.
◎ Features analog audio output.
◎ Supports S/PDIF audio input.
◎ Supports ARC.
Control
◎ Supports USB 2.0 keyboard and mouse remote operation.
◎ Supports USB touch screen devices.
◎ Supports CEC one-touch power control.
◎ Bidirectional IR remote device control.
◎ Supports bidirectional RS232 communication.
◎ Supports Telnet, SSH, HTTP, and HTTPS.
◎ Provides API commands for third-party system integration.
◎ Supports KVM cross-host roaming function.
Transmission
◎ Supports dual IP stream output：
– Main stream supports 4K 60Hz output.
– Sub stream supports 360×240 15Hz preview.
◎ Integrates transmission of video signals/audio signals/USB data/RS232 control/HDMI signals/IR control over IP networks.

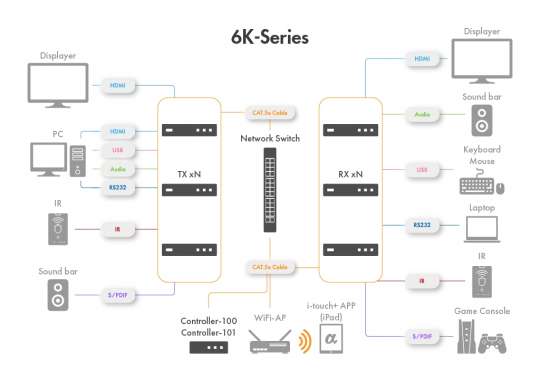

Application Diagram
the SPECIFICATIONS
| Video Input | 1 x RJ45 / Optical |
|---|---|
| HDMI® input | HDMI® 2.0, HDCP2.2/2.3 |
| Video Input Resolution | 3840 x 2160p 60Hz 4:4:4, 3840 x 2160p 50Hz 4:4:4, 3840 x 2160p 30Hz 4:4:4, 3840 x 2160p 24Hz 4:4:4, 1920 x 1200 60Hz, 1920 x 1080p 60Hz, 1920 x 1080p 50Hz, 1920 x 1080p 25Hz, 1920 x 1080p 24Hz, 1920 x 1080i 60Hz, 1680 x 1050 60Hz, 1600 x 1200 60Hz, 1600 x 900 60Hz, 1440 x 900 60Hz, 1400 x 1050 60Hz, 1366 x 768 60Hz, 1280 x 1024 60Hz, 1280 x 960 60Hz, 1280 x 800 60Hz, 1280 x 768 60Hz, 1280 x 720 60Hz, 1280 x 720p 50Hz, 1024 x 768 60Hz, 800 x 600 60Hz, 720 x 576p 50Hz, 720 x 480p 60Hz, 640 x 480p 60Hz |
| Video Output | 1 x HDMI® |
| Video Output Resolution | 3840 x 2160p 60Hz 4:4:4, 3840 x 2160p 50Hz 4:4:4, 3840 x 2160p 30Hz 4:4:4, 3840 x 2160p 24Hz 4:4:4, 1920 x 1200 60Hz, 1920 x 1080p 60Hz, 1920 x 1080p 50Hz, 1920 x 1080p 25Hz, 1920 x 1080p 24Hz, 1920 x 1080i 60Hz, 1680 x 1050 60Hz, 1600 x 1200 60Hz, 1600 x 900 60Hz, 1440 x 900 60Hz, 1400 x 1050 60Hz, 1366 x 768 60Hz, 1280 x 1024 60Hz, 1280 x 960 60Hz, 1280 x 800 60Hz, 1280 x 768 60Hz, 1280 x 720 60Hz, 1280 x 720p 50Hz, 1024 x 768 60Hz, 800 x 600 60Hz, 720 x 576p 50Hz, 720 x 480p 60Hz, 640 x 480p 60Hz |
| Audio Input | 1 x RJ45 / Optical , 1 x S/PDIF |
| Audio Output | 1 x HDMI®, 1 x 3.5 mm stereo jack, |
| Data Rate | 3840 x 2160 60Hz: 650Mbps (avg) / 900Mbps (max) |
| Point-to-Point Latency | 1fps |
| Impedance | 100Ω |
| Input DDC Signal | 5V p-p(TTL) |
| IR | 20-60KHz |
| RS232 | Up to 115200 |
| Power Supply | DC 12V3A / PoE |
| Power Consumption | 7 W – Max. |
| ESD Protection | Human body model: ±8kV (air-gap discharge) ±4kV (contact discharge) |
| Surge Protection | Voltage: ±1kV |
| Operating Temperature | 0°C ~ 45°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 70°C / -4°F ~ 140°F |
| Humidity | 10~90% RH (non-condensing) |
