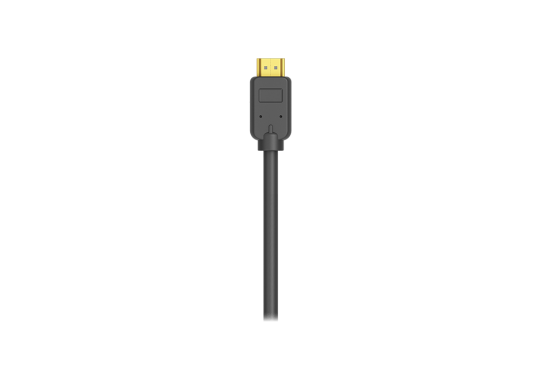

CAP-HDMI®-101x (HDMI® 2.0)
Aegis CAP-HDMI®-101x series is an HDMI® 2.0 cable supporting 4K 60Hz ultra-high-definition output with powerful 18Gbps bandwidth, perfectly delivering fine and clear image details. To ensure signal stability and transmission quality, the cable features high-quality PVC outer jacket combined with metal braided dual-layer shielding design, effectively isolating external electromagnetic interference while meeting strict VW-1 fire safety standards. Regardless of the application scenario, the aegis CAP-HDMI®-101x provides high-definition and stable transmission quality, making it the best choice for those pursuing perfect audiovisual experiences.
* Cable Length
CAP-HDMI®-1010：1m
CAP-HDMI®-1011：2m
CAP-HDMI®-1012：3m
CAP-HDMI®-1013：4m
CAP-HDMI®-1014：5m
THE FEATURES
CAP-HDMI®-101x (HDMI® 2.0)
◎ Supports HDMI® 2.0 standard.
◎ Supports ultra-high resolution video up to 4K60Hz.
◎ Supports 18Gbps high-bandwidth transmission.
◎ Supports CEC extended functions.
◎ Supports HDMI® Ethernet Channel (HEC).
◎ Supports up to 32 audio channels and 4 audio streams.
◎ Features VW-1 grade cable with excellent fire safety characteristics.
◎ VW-1 fire-resistant cable for enhanced safety
◎ 24K gold-plated connectors for oxidation resistance and durability, ensuring stable and reliable signal transmission.

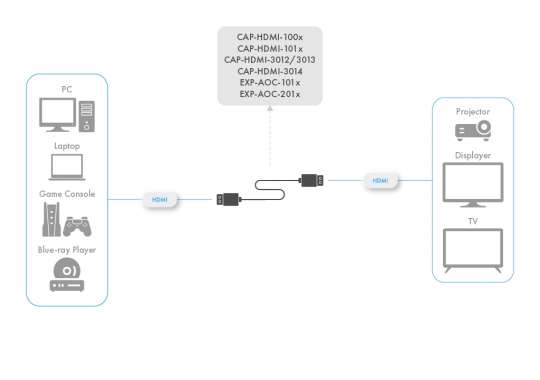

Application Diagram
the SPECIFICATIONS
| Video Input | HDMI® Type-A |
|---|---|
| Video Output | HDMI® Type-A |
| Video Version | HDMI® 2.0 |
| HDCP | Compatible with HDCP 2.2/1.4 |
| DDC | Supports DDC2B and EDID auto-detection Maximum Transmission Bandwidth |
| Maximum Transmission Bandwidth | 4K 60Hz
|
| Audio Specifications | Supports 32 audio channels |
| Connector Plating | 24K gold-plated |
| Cable Outer Material | Black PVC, compliant with RoHS standards |
| Cable Shielding Material | Aluminum-magnesium braid |
| Cable Gauge | 28AWG |
| Cable Length | 1M~5M |
| Cable Outer Diameter | 7.3mm |
| Warranty | 2 Year |
