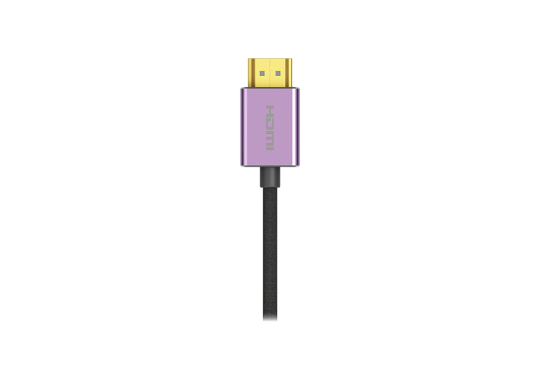

CAP-HDMI®-3014 (HDMI® 2.0)
Aegis CAP-HDMI®-3014 uses advanced coaxial technology, supporting 4K 60Hz video. Compliant with HDMI® 2.0 standard (18Gbps) and featuring metallic braiding for enhanced durability and EMI shielding. Its ultra-slim design enables easy installation in tight spaces, making it ideal for high-end home theaters, gaming, and professional video production.
* Cable Length
CAP-HDMI®-3014：5m
THE FEATURES
CAP-HDMI®-3014 (HDMI® 2.0)
◎ 5mm ultra-thin coaxial cable, supports 4K 60Hz with 48Gbps bandwidth.
◎ Supports 12-bit color/HDR/21:9, Dolby Atmos/DTS:X, 32-channel/1536kHz audio.
◎ Features eARC, QMS, QFT, ALLM for smooth audio-visual and gaming experience.
◎ Silver-plated oxygen-free copper core, dual-layer shielding for ultra-low EMI, distortion-free signal.
◎ Slim aluminum alloy connector with gold-plated contacts, protective cover, oxidation-resistant and durable.
◎ Metallic braiding for enhanced cable durability.
◎ Ideal for 8K TVs, home theaters, PS5/X-Box, gaming graphics cards/monitors.

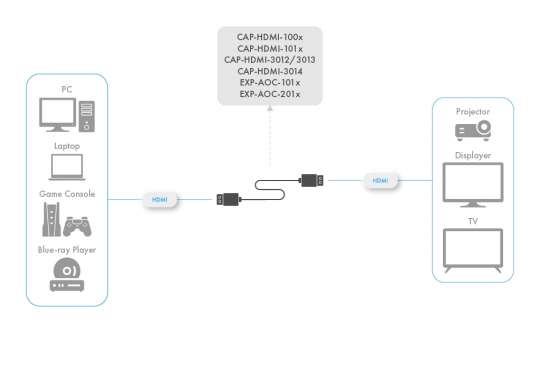

Application Diagram
the SPECIFICATIONS
| CAP-HDMI®-3014 Specification Video Input | HDMI® Type-A |
|---|---|
| Video Output | HDMI® Type-A |
| Video Version | HDMI® 2.0 |
| HDCP | Compatible with HDCP 2.2/1.4 |
| DDC | Supports DDC2B and EDID auto-detection Maximum Transmission Bandwidth |
| Maximum Transmission Bandwidth | 18G, Deep Colors 12bit, HDR, BT2020 |
| Maximum Digital Resolution | 4K60Hz |
| Audio Specifications | Supports 32 audio channels |
| Connector Plating | gold-plated |
| Cable Outer Material | PVC/ High-density nylon braided |
| Cable Gauge | 30AWG |
| Cable Length | 5M |
| Cable Outer Diameter | 4.8mm |
| Warranty | 2 Year |
