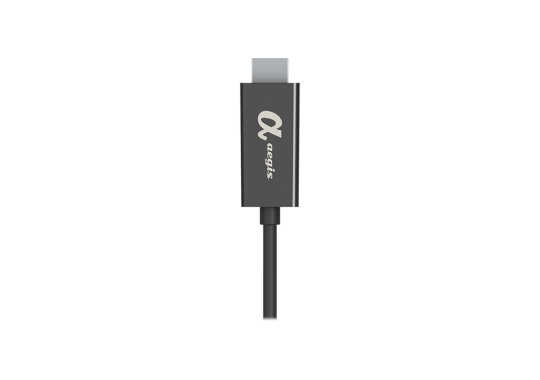

CAP-UHD-100x (TypeC 3.1 to HDMI® 2.0)
Aegis CAP-UHD-100x USB Type-C to HDMI® 2.0 cable enables you to easily connect devices with USB Type-C ports to HDMI® displays, enjoying crisp and smooth 4K video quality. Supporting HDMI® 2.0 standard with resolution up to 4K60Hz, it's compatible with laptops, tablets, smartphones and other devices, making it the perfect choice for both work and entertainment.
THE FEATURES
CAP-UHD-100x ( TypeC 3.1 to HDMI® 2.0 )
◎ Supports 4K 60Hz ultra-high definition video.
◎ Supports resolution up to 3840×2160 60Hz or 4096×2160 60Hz.
◎ Compliant with USB Type-C 3.0 specification.
◎ Supports DisplayPort Alt Mode 3.0.
◎ Compliant with HDMI v2.0 standards.
◎ Compliant with DP v1.2, supporting 1/2/4 lanes with up to HBR3.
◎ Supports HDCP 1.4 and HDCP 2.3.
◎ Supports RGB 4:4:4 at 8/10/12-bit color depth.
◎ Supports YCbCr 4:4:4, 4:2:2, 4:2:0 at 8/10/12-bit color depth.
◎ Supports LPCM audio format.
◎ Supports High Bit Rate (HBR) audio formats.
◎ Supports 3D timing.
◎ Supports High Dynamic Range (HDR).
◎ Fully plug-and-play, no driver installation required.

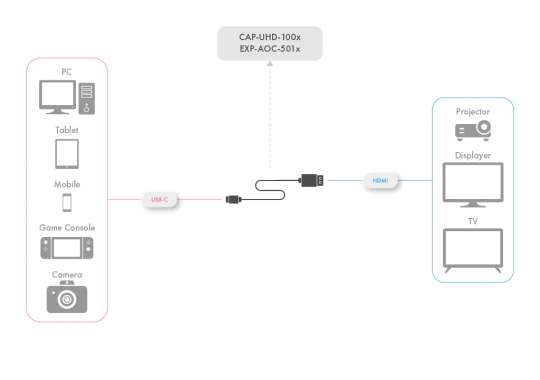

Application Diagram
the SPECIFICATIONS
| Video Input | USB Type-C |
|---|---|
| Video Output | HDMI® Type-A |
| Video Version | DP1.2/ HDMI® 2.0 |
| HDCP | Supports HDCP 2.3/1.4 |
| EDID Support | Yes |
| HDR/ 3D Support | Yes |
| Color Formats | RGB 4:4:4 8/10/12bi YCbCr 4:4:4 , 4:2:2 ,4:2:0 8/10/12-bit |
| Maximum Digital Resolution | 4K 60Hz 3840 x 2160 60Hz or 4096×2160 60Hz |
| Audio Specifications | LPCM |
| Connector Plating | Nickel-Plated Connectors |
| Cable Outer Material | PVC |
| Cable Type | Copper Wire Construction |
| Cable Outer Diameter | 4.8mm |
| Cable Length | 1M~3M |
| Operating Temperature | 0°C to 55°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Warranty | 2 Year |
