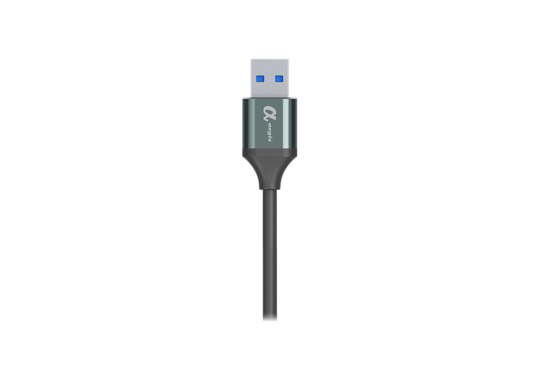

CAP-USB-110x (USB-A 3.0 to TypeC)
Aegis CAP-USB-110x is a 2-meter USB Type-C to USB 3.0 cable, designed for both charging and data transmission. Featuring a reversible USB Type-C connector, it is convenient to use on either side and fully complies with USB-IF standards. It supports up to 3A high-current charging and USB 3.1 Gen 1 specifications, enabling data transfer speeds of up to 5Gbps while charging simultaneously. The outer shell is made of anodized aluminum alloy, providing long-lasting durability and resistance to oxidation and rust. Additionally, the cable is reinforced with a metal braided mesh layer, effectively protecting the internal wires from breakage and enhancing anti-interference capabilities, ensuring safe and reliable performance.
* Cable Length
CAP-USB-1100：1m
CAP-USB-1101：2m
THE FEATURES
CAP-USB-110x ( USB-A 3.0 to TypeC )
◎ This product features a USB-C connector: Reversible design ensures easy plugging without damaging your devices.
◎ Stylish and durable: Made with an anodized aluminum alloy casing, resistant to oxidation and rust.
◎ Stable Current: Supports 3A high-current charging.
◎ Supports 5Gbps Bandwidth Transmission: Ensures fast and efficient data transfer.
◎ Eco-Friendly and Non-Toxic Materials: Designed for worry-free, sustainable usage.

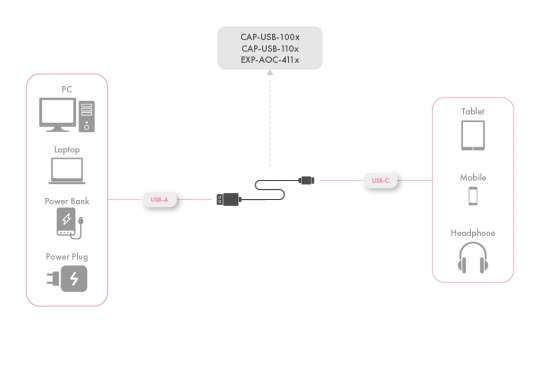

Application Diagram
the SPECIFICATIONS
| Input Type | USB Type-C |
|---|---|
| Output Type | USB Type-A |
| Transfer Speed | USB 3.1 Gen1（5Gbps） |
| Compatibility | Backward compatible with USB 3.0/2.0 |
| Operating System Support | Windows/ macOS |
| Connector Plating | Nickel-Plated Connectors |
| Cable Jacket Material | TPE |
| Cable Type | Copper Wire Construction |
| Cable Outer Diameter | OD4.5mm |
| Power | 5V/3A-15W |
| Cable Length | 1M / 2M |
| Operating Temperature | 0°C to 55°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Warranty | 2 Year |
