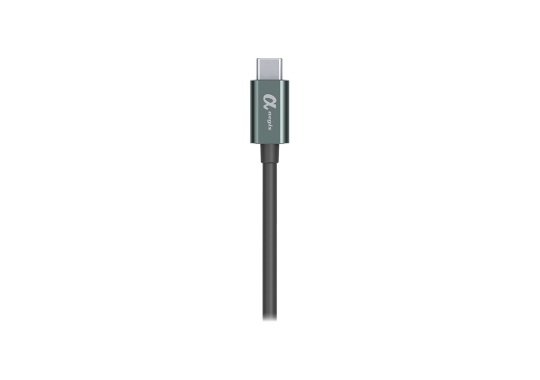

CAP-USBC-100x (TypeC to TypeC)
Aegis CAP-USBC-100x is a 2-meter Type-C to Type-C cable, utilizing USB Type-C connectors with a reversible design, allowing both sides to be used seamlessly. It supports up to 3A high-current charging. This cable offers a data transfer rate of up to 10Gbps, enabling effortless data transmission. It also supports a maximum resolution of 4K 60Hz, ensuring crystal-clear visuals. The outer casing is made of anodized aluminum alloy, providing durability for long-term use and resistance to oxidation and rust. Additionally, the cable features an extra layer of metal-braided mesh, effectively protecting the internal wires from breakage and enhancing anti-interference performance.
* Cable Length
CAP-USBC-1000：1m
CAP-USBC-1001：2m
THE FEATURES
CAP-USBC-100x ( TypeC to TypeC )
◎ This product features a USB-C connector: Reversible design ensures easy plugging without damaging your devices.
◎ Stylish and Durable: Anodized aluminum alloy casing, resistant to oxidation and rust.
◎ Stable Current: Supports 3A high-current charging.
◎ High-Speed Data Transfer: Supports 10Gbps bandwidth for fast data transmission.
◎ UHD Video Transmission: 4K at 60Hz support for an immersive high-definition audiovisual experience.

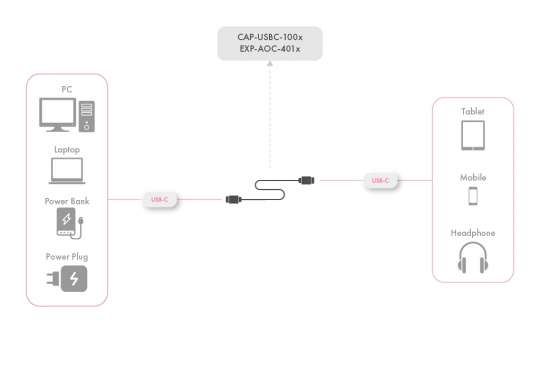

Application Diagram
the SPECIFICATIONS
| Input Type | USB Type-C |
|---|---|
| Output Type | USB Type-C |
| Transfer Speed | USB 3.1 Gen2（10Gbps） |
| Compatibility | USB 3.1 Gen 2 Backward compatible with USB 3.0/2.0 |
| Operating System Support | Windows/ macOS |
| Connector Plating | Nickel-Plated Connectors |
| Cable Jacket Material | TPE |
| Cable Type | Copper Wire Construction |
| Cable Outer Diameter | OD4.5mm |
| Power | 5V/3A-15W |
| Cable Length | 1M / 2M |
| Operating Temperature | 0°C to 55°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Warranty | 2 Year |
