DSP-USBC-1000

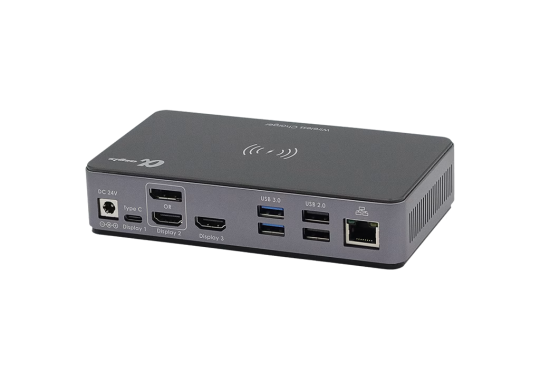

Aegis DSP-USBC-1000 USB-C 8K_14-in-1 Docking Station provides a comprehensive expansion solution for modern professionals. It supports display output at resolutions up to 8K 60Hz and allows connection of up to three monitors on Windows systems using SST and MST modes, while macOS supports mirror mode output. Featuring Thunderbolt 3/4 technology, it is fully compatible with a wide range of USB-C devices, offering multiple ports including USB-C 3.2, USB-A, and 1Gbps Ethernet. It comes equipped with Power Delivery 3.0 laptop charging technology and integrates dual-coil wireless charging, delivering charging speeds up to 1.4x faster than standard wireless chargers and providing a broader charging area. With a single connection cable, all functions are seamlessly integrated, making it an ideal solution for business professionals, content creators, and designers seeking a streamlined and highly efficient workspace.
THE FEATURES
DSP-USBC-1000
◎ Expand connectivity for your MacBook Pro, Chromebook, Dell XPS, or any other USB-C compatible laptop, with Thunderbolt technology support.
◎ Supports single-port video output up to 8K (7680×4320) @ 60Hz, and supports SST and MST modes (Mac OS supports mirror mode only).
◎ Equipped with HDMI, DisplayPort (DP), and USB-C ports, capable of driving up to three external displays simultaneously.
◎ Supports HDR (High Dynamic Range) technology and various color sampling formats including YCbCr 4:4:4, 4:2:2, and 4:2:0.
◎ Supports 100W Power Delivery 3.0 (PD) fast charging, providing sufficient power and charging for the connected laptop via a single USB-C cable.
◎ Provides two USB-C 3.2 data ports, along with two USB-A 3.0/2.0 ports.
◎ Offers an Ethernet port supporting up to 1Gbps (Gigabit) speed.
◎ Includes a dedicated Audio Out port.
◎ Supports wireless charging for external devices (Quick Charge 2.0).

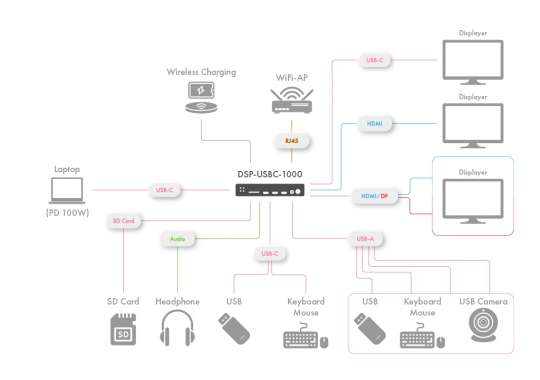

Application Diagram
the SPECIFICATIONS
| Resolution |
|
|---|---|
| USB-C Input Ports/PD 3.0 | Thunderbolt 3/4 port compatible, with 100 watt power delivery |
| USB-C 3.2 Gen 2 x2 Ports | Up to 10G data speed (1 Port BC1.2 Fast-Charge) |
| USB-A 3.2 Gen1 x2 Ports | Up to 5G data speed |
| USB-A 2.0 x2 Ports | Up to 480Mbps data speed |
| Speaker/Microphone | 3.5mm Phone jack PCM |
| SD Card Reader | SD 4.0 |
| RJ45 Ethernet Port | 10/100/1000Mbps |
| Power Supply | DC 24V 5.5A-132W /Power Delivery (PD3.0) Max 100W |
