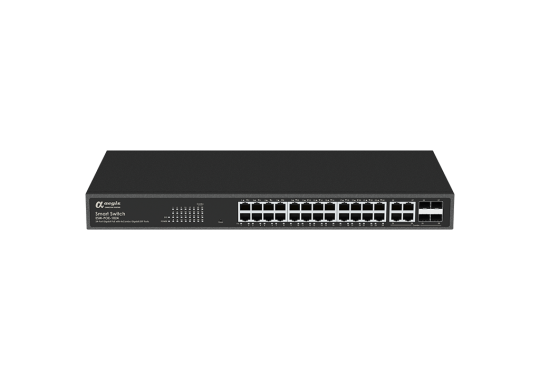

ESW-POE-1024
ESW-POE-1024 is a high-performance and stable 24-port + 4 1G Combo (RJ45/Fiber) PoE managed switch. Its RJ45 ports support 10/100/1000 Mbps, providing efficient network connectivity and power delivery. The device supports fast forwarding on all ports and features MDI/MDIX automatic crossover detection, ensuring an optimal network experience. Using store-and-forward technology and dynamic memory allocation, the switch optimizes bandwidth allocation to meet high-traffic transmission demands. It is equipped with a highly reliable wide voltage input design, ensuring stable operation even under fluctuating voltage conditions. The switch supports multi-mode operation to adapt to various environments and features plug-and-play functionality, enabling users to quickly deploy network infrastructure with ease and efficiency. This makes the ESW-POE-1024 an ideal choice for enterprise-grade network construction.
THE FEATURES
ESW-POE-1024
◎ Complies with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3x, IEEE802.1q standards.
◎ Flow control: Full-duplex uses the IEEE802.3x standard, half-duplex uses the backpressure standard.
◎ Adopts the store-and-forward mode.
◎ Supports standard PoE protocols IEEE802.3af and IEEE802.3at.
◎ Supports loop detection.
◎ Supports an 8K MAC address table.
◎ Maximum PoE output per port: 30W, total output: 400W.
◎ Switching Capacity up to 56Gbps.
◎ Supports Web GUI management.
◎ Supports jumbo frames.
◎ Support priority queues for QoS

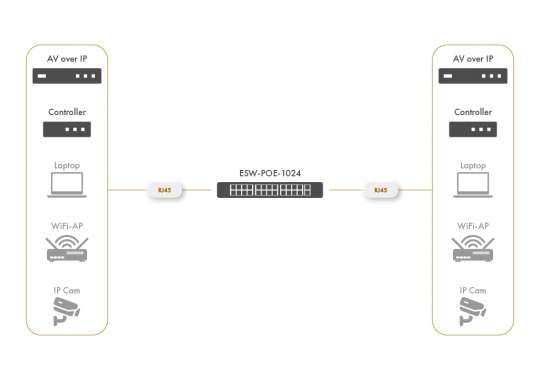

Application Diagram
the SPECIFICATIONS
| Chipset | EN8853C+EN8808Q x 3+EN8804F+IP808AR x 3 |
||||
|---|---|---|---|---|---|
| Standard Compliance | IEE802.3 , IEE802.3u , IEE802.3ab , IEE802.4x , IEE802.1q |
||||
| Interface | 24 x 10/100/1000Mbps auto-negotiation RJ45 ports + 4 x 1G Combo (RJ45 or Fiber) |
||||
| Transmission Mode | Store-and-Forward |
||||
| Mac Address Table | 8K |
||||
| Switching Capacity | 56Gbps |
||||
| Packet forwarding rate | 35.7Mbps |
||||
| Packet Buffer | 4M bits |
||||
| Jumbo Frame | 15K |
||||
| Power Supply | AC 100-240V 50/60Hz |
||||
| Power Consumption | Up to 400w |
||||
| Operating Temperature | 0ºC～50ºC RH 10 ~ 90% (non-condensing) |
||||
| Storage Temperature | -40ºC～70ºC RH 5 ~ 90% (non-condensing) |
||||
| LED indicator (Device) |
|
||||
| LED indicator (Port) |
|
||||
| Dimensions (W x L x H) | 220 x 440 x 44.5 mm |
