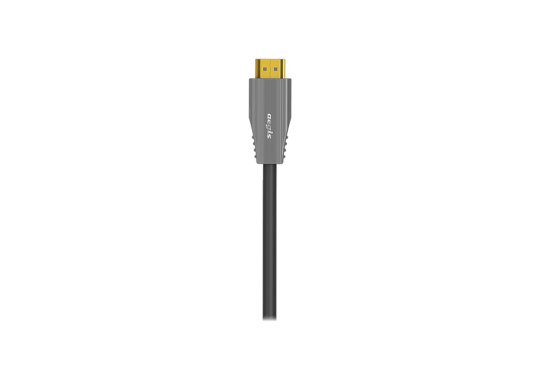

EXP-AOC-201x (HDMI® 2.1)
Aegis 8K HDMI® 2.1 AOC (Active Optical Cable) represents the new generation standard in video transmission, fully supporting all advanced specifications of HDMI® 2.1 and HDCP 2.2, delivering an unparalleled 8K ultra-high-definition experience. Using hybrid fiber-copper technology, it not only breaks through spatial limitations to achieve signal transmission up to 100 meters but also provides powerful 48Gbps bandwidth, perfectly supporting 8K@60Hz and 4K@120Hz ultimate video performance. It features plug-and-play functionality requiring no additional driver installation and is fully backward compatible with HDMI® 2.0 and 1.4 specifications.
* Cable Length ( aegis provides standard specifications and customizable length options )
EXP-AOC-2010：5m
EXP-AOC-2011：10m
EXP-AOC-2012：15m
EXP-AOC-2013：20m
THE FEATURES
EXP-AOC-201x (HDMI® 2.1)
◎ Maximum length up to 100 meters (custom lengths available).
◎ Plug-and-play, no drivers or external power required.
◎ Compatible with HDMI® 2.1 standard.
◎ Backward compatible with HDMI® 2.0/HDMI® 1.4.
◎ Supports HDCP 2.2.
◎ Supports Dynamic HDR formats.
◎ Supports VRR (Variable Refresh Rate).
◎ Supports QMS (Quick Media Switching).
◎ Supports QFT (Quick Frame Transport).
◎ Supports ALLM (Auto Low Latency Mode).
◎ Supports DSC (Display Stream Compression).
◎ Supports 48 Gbps bandwidth, suitable for up to 4K 120Hz and 8K60Hz.
◎ Self-diagnostic function with EDID information.
◎ Supports eARC (Enhanced Audio Return Channel).
◎ Lossless signal transmission, delivering instant clear digital images.
◎ Hybrid fiber-optic and copper cable structure.

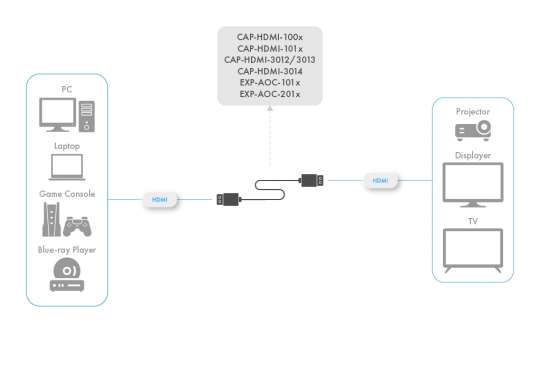

Application Diagram
the SPECIFICATIONS
| Video Input | HDMI® Type-A |
|---|---|
| Video Output | HDMI® Type-A |
| Video Version | HDMI® 2.0 |
| HDCP | Compatible with HDCP 2.2/1.4 |
| DDC | Supports DDC2B and EDID auto-detection Maximum Transmission Bandwidth |
| Maximum Transmission Bandwidth | 48G, Deep Colors 12bit, HDR, BT2020 |
| Maximum Digital Resolution | 8K 60Hz, 4K 120Hz |
| Audio Specifications | Supports 32 audio channels |
| Connector Plating | 24K gold-plated |
| Cable Outer Material | PVC/TPU (Custom) |
| Cable Type | Hybrid cable, OM3 fiber optic and copper wire |
| Cable Outer Diameter | 4.5mm |
| Cable Length | 10M~100M |
| Operating Temperature | 0°C to 55°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Warranty | 2 Year |
