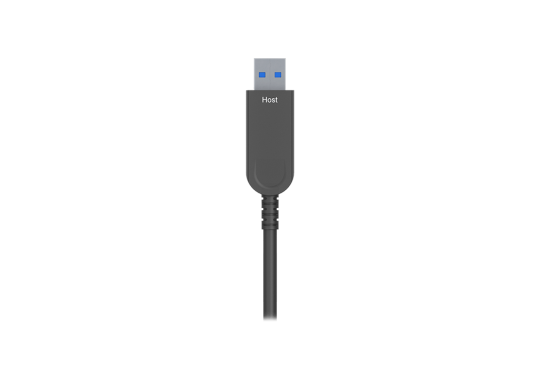

EXP-AOC-411x (USB-A 3.1 to TypeC)
Aegis EXP-AOC-411x USB-A 3.1 to USB-C Active Optical Cable employs fiber optic technology to achieve long-distance, high-speed, and stable data transmission. It supports USB 3.1 Gen 2 with speeds up to 10Gbps, suitable for high-speed external hard drives, cameras, and other devices. The cable is lightweight, plug-and-play, and backward compatible with USB 2.0.
* Cable Length ( aegis provides standard specifications and customizable length options )
EXP-AOC-4112：15m
THE FEATURES
EXP-AOC-411x ( USB-A 3.1 to TypeC )
◎ Supports USB 3.0 and USB 2.0 super-speed device extension up to 50 meters.
◎ Compatible with all USB 3.0 and USB 2.0 device types, host-side: control, interrupt, bulk and isochronous transfers, up to 10Gbps.
◎ Supports Windows and Mac operating systems.
◎ Significantly enhances USB 2.0 device bandwidth through specialized technology.
◎ Compatible with various USB devices, including printers, scanners, hard drives, audio devices, touch screens, webcams, and game controllers.

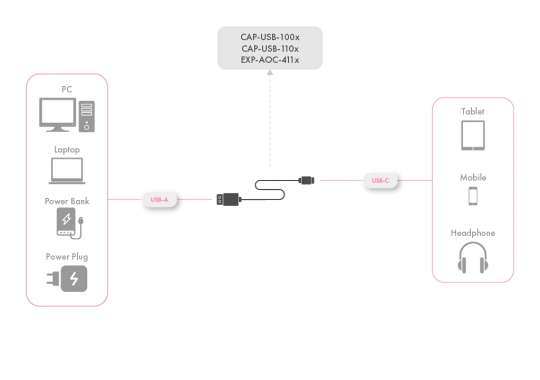

Application Diagram
the SPECIFICATIONS
| Video Input | USB Type-A |
|---|---|
| Video Output | USB Type-C |
| Transmission Speed | USB 3.1 Gen 2, up to 10Gbps |
| Compatibility | USB 3.1 Gen 2, up to 10Gbps |
| Compatibility | Backward compatible with USB 3.0 and USB 2.0 |
| Operating System Support | Windows/ macOS |
| Connector Plating | Nickel-Plated Connectors |
| Cable Outer Material | PVC |
| Cable Type | Hybrid cable, OM3 fiber optic and copper wire |
| Cable Outer Diameter | 4.8mm |
| Cable Length | 10M~50M |
| Operating Temperature | 0°C to 55°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Warranty | 2 Year |
