EXP-AOC-501x (TypeC to HDMI® 2.0)
Aegis EXP-AOC-501x USB-C to HDMI® AOC fiber optic cable delivers 4K 60Hz high-quality video transmission up to 30 meters. Using fiber optic technology, it ensures stable, completely EMI-free transmission and fully complies with DisplayPort 1.2 and USB-C DP Alt Mode standards. This cable is ideal for high-speed video applications including computers, wearable devices, TVs, displays and projectors, offering a mature and competitive solution for demanding audio-visual markets.
* Cable Length ( aegis provides standard specifications and customizable length options )
EXP-AOC-5012：15m
THE FEATURES
EXP-AOC-501x ( TypeC to HDMI® 2.0 )
◎ Supports 4K 60Hz ultra-high definition video.
◎ Supports multiple resolutions including 4K 30Hz, 1080p, 1080i, 720p.
◎ Supports HDR display, enhancing color depth and contrast.
◎ Supports HDMI® 3D video.
◎ Maximum supported length of 30 meters, with customizable length options.
◎ Utilizes fiber optic technology, ensuring zero RF interference, stable operation in complex environments.
◎ Compliant with DisplayPort 1.2 specifications, supporting DP Alternate Mode.
◎ Meets HDMI® 2.0 standards.
◎ Supports HDCP 2.2 content protection.
◎ Fiber optic transmission ensures stable signal quality.
◎ Hybrid fiber-optic and copper cable structure.

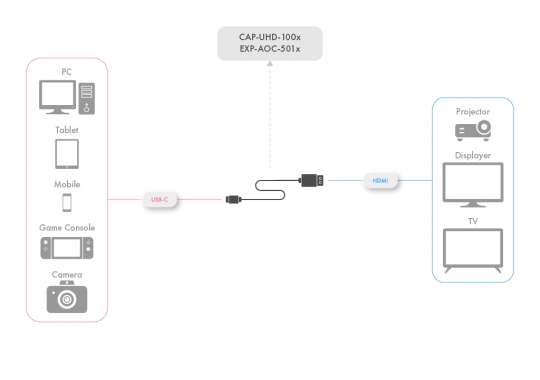

Application Diagram
the SPECIFICATIONS
| Video Input | USB Type-C |
|---|---|
| Video Output | HDMI® Type-A |
| Video Version | DP1.2/ HDMI® 2.0 |
| HDCP | Compatible with HDCP 2.2/1.4 |
| EDID Support | Yes |
| HDR/ 3D Support | Yes |
| Maximum Transmission Bandwidth | 18G |
| Maximum Digital Resolution | 4K60Hz |
| Audio Specifications | Dolby TrueHD、DTS-HD Master Audio、PCM |
| Connector Plating | 24K gold-plated |
| Cable Outer Material | PVC/TPU (Custom) |
| Cable Type | Hybrid cable, OM3 fiber optic and copper wire |
| Cable Outer Diameter | 4.5mm |
| Cable Length | 10M~30M |
| Operating Temperature | 0°C to 55°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Warranty | 2 Year |
