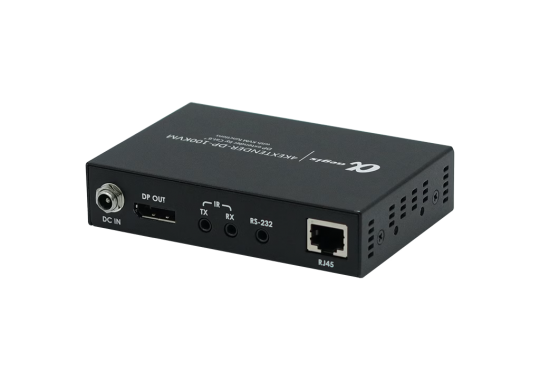

EXP-DP-5000

Aegis EXP-DP-5000 is a professional-grade DisplayPort extender that utilizes advanced AVT technology to extend DisplayPort signals up to 100 meters via a single Cat.6 (or higher) network cable. The product supports 4K60Hz ultra-high resolution output and is compliant with HDCP 1.3, fully supporting the DisplayPort 1.2a standard. With integrated USB KVM functionality and support for bidirectional IR and RS232 transmission, the EXP-DP-5000 is the ideal solution for video conferencing systems, control centers, and professional audiovisual applications.

DOWNLOAD BROCHURE / DATASHEET

THE FEATURES

EXP-DP-5000

◎ Audio and video signals can be transmitted without delay through Cat6 (or above) network cables.
◎ Transmission distance up to 100 meters, supporting a maximum resolution of 4K60Hz.
◎ Compliant with DP 1.2a standard specifications.
◎ Supports HDCP 1.3.
◎ Supports HBR2 / HBR / RBR transmission rates.
◎ Supports 1, 2, or 4 transmission lanes.
◎ Supports KVM functionality.
◎ Supports bidirectional IR and RS232 transmission.

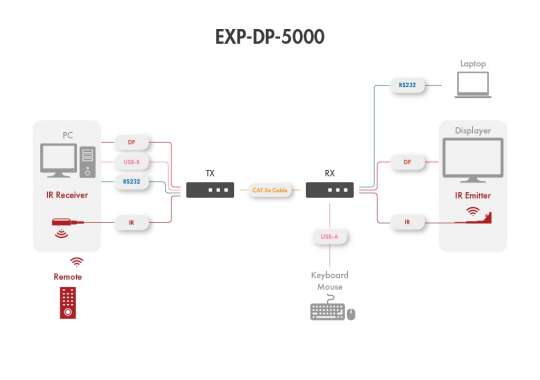

Application Diagram

the SPECIFICATIONS

Model

EXP-DP-5000 TX
EXP-DP-5000 RX
HDMI Bandwidth

21.6Gbit/s（High Bit Rate 2（HBR2）mode）
HDMI Resolution

720P,1080P/24,30,50,60Hz, 4Kx2K/24,30,60Hz.
Audio Format

2 Channel 16/20/24bit PCM at 32/44.1/48KHz IEC 61937 Compress audio with IEC 60958 frame rate at 2/44.1/48KHz, up to 8 channels. IEC Compressed audio format.
HDCP

1.3
Input Ports

DisplayPort x 1
RJ45 x 1 – Cat.6/6e/7
Output Ports

RJ45 x 1 Cat.6/6e/7
DisplayPort x 1
Control Ports

IR Blaster x 1 – 3.5mm IR Receiver x 1 – 3.5mm RS232 x 1 – 3.5mm
USB 2.0Type B x 1
USB 2.0 Type A Keyboard USB 2.0 Type A – Mouse
IR Frequency

20-60Khz
Baud Rate

Up to 115200 bps
Cable Distance

4k/60Hz 8bit 4:4:4 Cat.6 100M(MAX.)
Power Supply

15VDC / 2.4 Amp (US,UK,EU,AU Power Plug)
Power Consumption

36W – Max.
Chassis Material

Metal
Operating Temperature

0℃ – 40℃ / 32℉ – 104℉
Storage Temperature

-20℃ – 60℃ / -4℉ – 140℉
Humidity

10 – 85% RH (Non-Condensing)
Dimensions (L × W × H)

4.33 in (110 mm) X 2.95 in (75 mm) X 0.98 in (25 mm)
Weight

270 g
