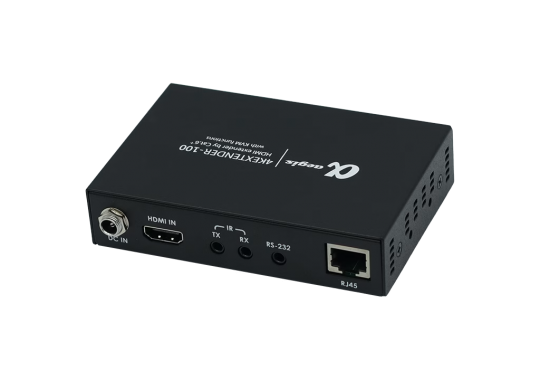

EXP-HDMI-7201
Aegis EXP-HDMI®-7201 is a professional-grade HDMI® extender that extends HDMI® signals up to 100 meters using a single Cat.5e network cable. Supporting resolutions up to 4K60Hz and 12-bit deep color, it leverages lossless compression technology and advanced signal processing to deliver vivid and lifelike color details. This product integrates HDMI®, IR, RS232, and USB KVM functionalities, enabling devices such as PCs, DVD players, and PS4 consoles to deliver the purest audiovisual experience. The system supports bidirectional IR transmission, offering convenient remote device control, while the RS232 interface allows for versatile system integration applications.
THE FEATURES
EXP-HDMI-7201
◎ Supports FHD 1080P60Hz, 3D, and 4K60Hz HDMI® signal transmission.
◎ Extends 1080P / 4K60Hz UHD signals up to 100 meters via Cat.5e network cable.
◎ Extends 1080P FHD signals up to 150 meters via Cat.6 network cable.
◎ Using AVT technology, it supports uncompressed and delay-free HDMI® audio and video signals.
◎ Supports bidirectional IR and RS-232 remote control.
◎ Supports KVM functionality.
◎ Compatible with HDCP and CEC.
◎ Supports audio formats including LPCM, DTS-HD, Dolby True HD, and Dolby Digital.

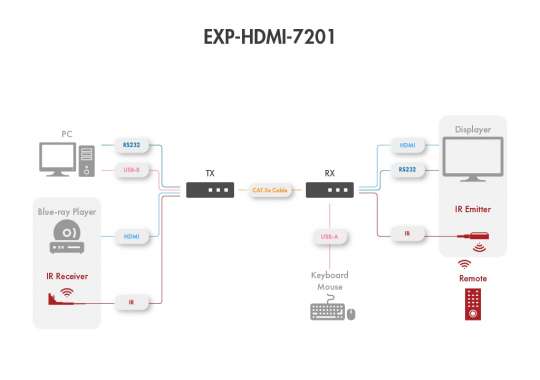

Application Diagram
the SPECIFICATIONS
| Model | EXP-HDMI®-7201 TX |
|---|---|
| HDMI® Bandwidth | 600MHz/ 18.0Gbps |
| HDMI® Resolution | 480P, 720P, 1080P/24,30,50,60Hz, 4Kx2K/24,30,60Hz. |
| Audio Format | 2 Channel 16/20/24bit PCM at 32/44.1/48KHz |
| HDCP | 1.3, 1.4 and 2.2 |
| Input Ports | HDMI® x 1 |
| Output Ports | RJ45 x 1 |
| Control Ports | IR Blaster x 1 – 3.5mm IR Receiver x 1 – 3.5mm RS232 X 1 – 3.5mm |
| IR Frequency/Maximum Distance | 20-60Khz The receiving range is up to 5 meters and the transmitting range is up to 1 meter. |
| Extension Distance | 100 Meters |
| Power Supply | 5VDC / 3.0 Amp |
| Power Consumption | 10W – Max. |
| Housing Material | Metal |
| Housing Color | Black |
| Operating Temperature | 0℃ – 40℃ / 32℉ – 104℉ |
| Storage Temperature | -15℃ – 55℃ / -5℉ – 131℉ |
| Humidity | 5 – 85% RH (Non-Condensing) |
| Dimensions Lx Wx D | 110 mm X 75 mm X 25 mm |
| Weight | 270 g |
