EXP-USB-3000

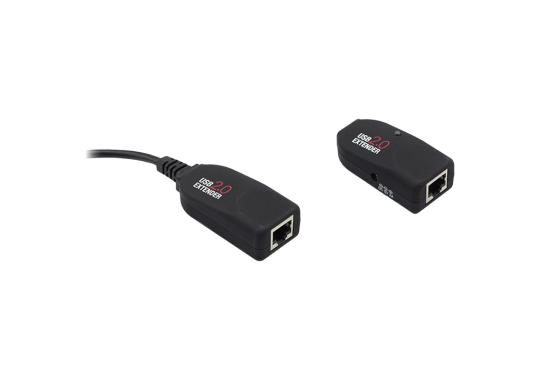

Aegis EXP-USB-3000 USB Extender is designed for point-to-point USB signal transmission over standard Cat.5/5e/6 network cables. It supports USB 2.0 high-speed (480Mbps), full-speed (12Mbps), and low-speed (1.5Mbps) transmission modes, extending signals up to 50 meters. Fully compliant with USB 2.0 specifications, it also offers backward compatibility with USB 1.1/1.0 devices, ensuring seamless connectivity with a wide range of USB peripherals. Featuring an RJ-45 interface, the extender effectively reduces signal interference while providing a simple plug-and-play experience. With quick and easy installation, no complex configuration is required, allowing users to establish a stable USB connection effortlessly.
THE FEATURES
EXP-USB-3000
◎ Supports USB 2.0 high-speed (480Mbps).
◎ Backward compatible with USB 1.1 full-speed (12Mbps) and low-speed (1.5Mb/s).
◎ Extends USB device usage distance up to 50M.
◎ Supports hot-swapping.
◎ Most cost-effective signal transmission method, lower cost compared to other hubs or USB extenders.
◎ No driver download required.

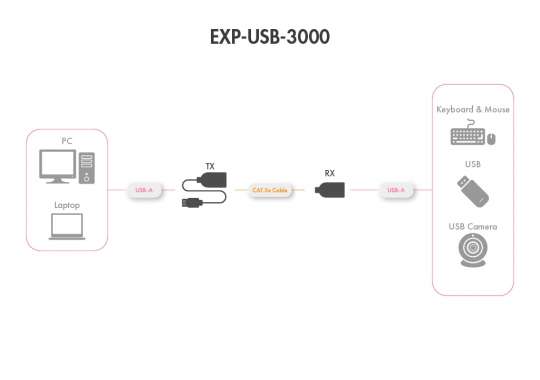

Application Diagram
the SPECIFICATIONS
| Local device | Ports: USB Type A Male x 1 ,RJ45 x 1 |
|---|---|
| Remote Device | Ports: USB Type A Female x 1, RJ45 x 1 |
| Built-in cable length | 1 Feet |
| USB Specification | USB 2.0/1.1 High(480Mb/s),Full(12Mb/s),low speed(1.5Mb/s) |
| Network cable | Standard Category-5/5e/6 Network |
| Maximum cable length | 50m |
| Operating Temperature | 0°~50°C (32 ~ 122°F) |
| Storage Temperature | -20°~70°C (-4 ~ 158°F) |
| Humidity | 0 ~ 80 % RH, Non-condensing |
