EXP-USB-3001
Aegis EXP-USB-3001 USB extension system uses a one-to-four distribution design, allowing users to connect up to four USB peripheral devices simultaneously through a single Cat.5e/6 network cable. The system fully supports USB 2.0 specifications, handling 480Mbps high-speed, 12Mbps full-speed, and 1.5Mbps low-speed transmission modes, with an effective extension distance of up to 50 meters. The product design emphasizes practicality and stability, with the receiver equipped with a dedicated DC 5V/2A power supply to ensure stable power support for connected devices. It is fully compatible with various USB peripherals such as printers, scanners, mice, and keyboards, featuring a plug-and-play design that requires no additional driver installation.
THE FEATURES
EXP-USB-3001
◎ Supports USB 2.0 high-speed (480Mbps).
◎ Backward compatible with USB 1.1 full-speed (12Mbps) and low-speed (1.5Mb/s).

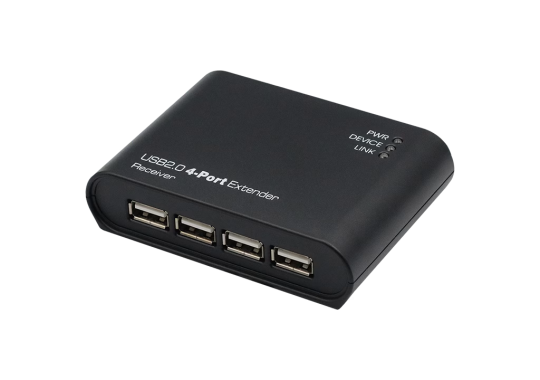

◎ The remote unit features a built-in 4-port USB hub, allowing connection of up to four USB 2.0 devices.
◎ Extends four USB 2.0 devices up to 50 meters via CAT5e/6 cable.
◎ Supports hot-swapping.
◎ No additional drivers required, plug and play.

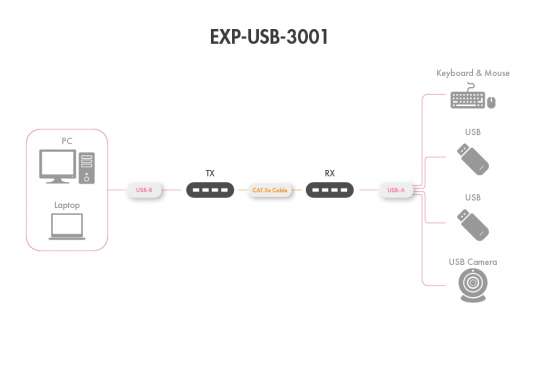

Application Diagram
the SPECIFICATIONS
| Unit | Transmitter (TX) |
|---|---|
| Upstream Port | Transmitter (TX): USB Type B Female X 1 |
| Downstream Port | Transmitter (TX): RJ45 Female X 1 |
| Power Mode | Transmitter (TX): Bus-powered |
| Dimensions & Weight | Transmitter (TX): 95.3 x 68.0 x 23.3mm & 67g |
| USB Specification | USB 2.0 / 1.1 High (480Mb/s) / Full (12Mb/s) / Low Speed (1.5Mb/s) |
| Network cable | Standard Category 5e/6 or higher Network cable |
| Maximum cable length | 50M (164.04ft) |
| Operating Temperature | 0°~50°C |
| Storage Temperature | -20°~70°C |
| Humidity | 0-80% RH, Non-condensing |
