SPP-HDMI-1200

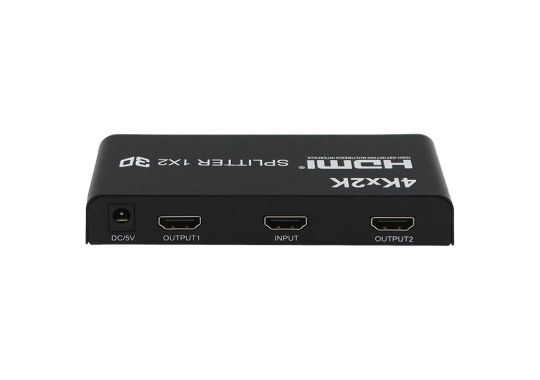

The aegis SPP-HDMI®-1200 High-Definition Splitter delivers a professional-grade HDMI® signal distribution solution, seamlessly duplicating a single HDMI® source to two display devices with zero signal loss.Compatible with DVD players, satellite receivers, set-top boxes, and cameras, this splitter ensures synchronized output across multiple HD screens, making it ideal for multi-screen display applications in both home and professional environments.
THE FEATURES
SPP-HDMI-120
◎ Fully compliant with HDMI® 1.4 specifications.
◎ Supports high resolutions: 480i/p, 576i/p, 720i/p, 1080i/p, 4Kx2K 25/30Hz.
◎ Supports 30/36-bit deep color and expanded color spaces, including SYCC601, Adobe RGB, and AdobeYCC601.
◎ Compatible with Blu-ray DVD 24/50/60fs, HD-DVD, and xvYCC.
◎ Supports audio formats: DTS-HD, Dolby TrueHD, LPCM 7.1, DTS, Dolby AC3, and DSD.
◎ Extends transmission distance and enhances signal quality.
◎ Compatible with DVI using an HDMI® to DVI adapter.
◎ Supports 3D.

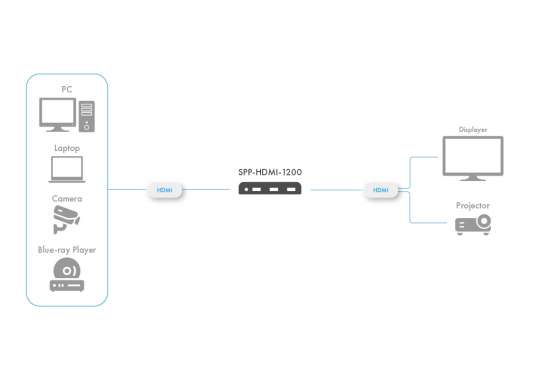

Application Diagram
the SPECIFICATIONS
| HDMI® source input port | 1 |
|---|---|
| Display Device Output Ports | 2 |
| Source Port Connectors | 19 PIN HDMI® |
| Display Device Port Connectors | 19 PIN HDMI® |
| HDCP Compliance | YES |
| Resolution | Up to 3840*2160 |
| Input Video Signal | 0.5-1.0 Volts P-P |
| Input DDC Signal | 5 Volts P-P(TTL) |
| Deep Color | 48 Bit |
| HDMI® Version | HDMI®1.4b |
| Bandwidth | Up to 340Mhz |
| Data Rate | Up to 3.4Gbps |
| Input Cable Length | 1080P≤20M,4k2k≤15M HDMI® Cable |
| Output Cable Length | 1080P≤20M,4k2k≤15M HDMI® Cable |
| Cable Standard | 26AWG HDMI®1.4 |
| Vertical Frequency Range | 60Hz |
| Power Consumption (Max) | 5Watts |
| Operating Temperature | -15℃ to +55℃ |
| Operating Voltage | DC 5V1A |
| Power Adapter | 5V 1A |
