SPP-UHD-4000
Aegis SPP-UHD-2000 is an HDMI® splitter that distributes a single HDMI® signal to two display devices with full signal integrity. Featuring an ultra-high bandwidth design of 18Gbps, it supports high-resolution output up to 4K60Hz (4:4:4) and is fully compliant with the HDMI® 2.0b specification. This product includes audio extraction capabilities, allowing connection to audio systems or amplifiers via optical (TOSLINK) or analog audio outputs. It also features a 4K to 1080p downscaling function to ensure compatibility with a wide range of display devices. Equipped with an intelligent EDID management system, the SPP-UHD-2000 can automatically optimize or manually replicate display settings, providing a convenient and reliable distribution solution for professional AV systems.
THE FEATURES
SPP-UHD-4000
◎ Supports maximum resolution of 4K@60Hz (4:4:4), compliant with HDMI® 2.0b standards.
◎ Supports 18Gbps video bandwidth.
◎ Supports extraction of digital and analog audio from HDMI® signals.
◎ Supports 4K to 1080P video down-scaling.
◎ EDID copy and auto mode selectable via front panel.
◎ Compatible with HDCP 2.2/1.4 standards.
◎ Full metal housing design.
◎ Supports multiple audio formats, including Dolby/DTS series.

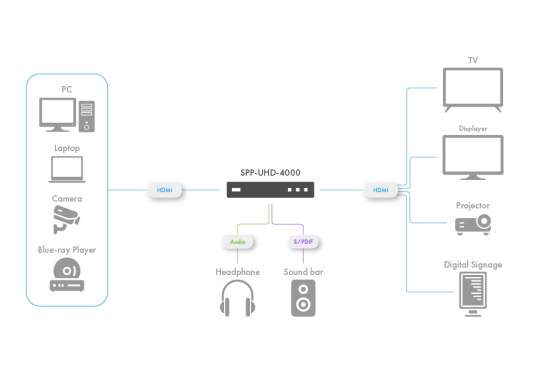

Application Diagram
the SPECIFICATIONS
| HDMI® compatibility | HDMI® 2.0b |
|---|---|
| HDCP Compatibility | 2.2/1.4 |
| Video Bandwidth | 18Gbps |
| Video Resolution | 720P 50/60Hz 1080P 50/60Hz, 4K2K 24Hz 4K2K 30Hz,4K2K 50/60Hz (4:4:4) |
| HDMI® Audio Formats | LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD |
| Color Space | RGB, YCbCr 4:4:4, YCbCr 4:2:2 |
| Output Ports | 4×HDMI® Type A [19-pin female] 1×L/R Audio out [3.5mm Stereo Mini-jack] 1×Optical out [S/PDIF] |
| Input Ports | 1×HDMI® Type A [19-pin female] |
| Power Supply | Input: AC100~240V 50/60Hz Output: DC5V/1A(US/EU standards ，CE/FCC/UL certified) |
| Power Consumption | 3.5W – Max. |
| Material | Metal |
| Color | Black |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Humidity | 20~90% RH (non-condensing) |
| Dimensions | 180mm(W)×62mm(D)×14mm(H) |
| Weight | 277g |
