SPP-USBC-1000
Aegis SPP-USBC-1000 Multi-Function Adapter unlocks the full expansion potential of USB-C laptops, converting a single Type-C output into two HDMI® ports, instantly transforming your laptop into a fully equipped workstation.Designed for MacBook Pro and various USB Type-C laptops, it supports 4K HDMI® high-definition output and is compatible with Thunderbolt 3 technology, providing a seamless solution for mobile office connectivity.
THE FEATURES
SPP-USBC-1000
◎ Supports Single Stream Transport (SST) or Multi-Stream Transport (MST).
◎ For DP 1.4 source：
– When connected to two monitors, both HDMI® outputs have a resolution of 4K 60Hz.
◎ For DP 1.2 source：
– When only one monitor is connected, the HDMI® output resolution is 4K 60Hz.
– When connected to two monitors, the resolution of both HDMI® outputs is 4K 30Hz.
◎ Supports High Dynamic Range (HDR) transmission.
◎ MST mode is not supported on Apple macOS; only mirror mode is available.

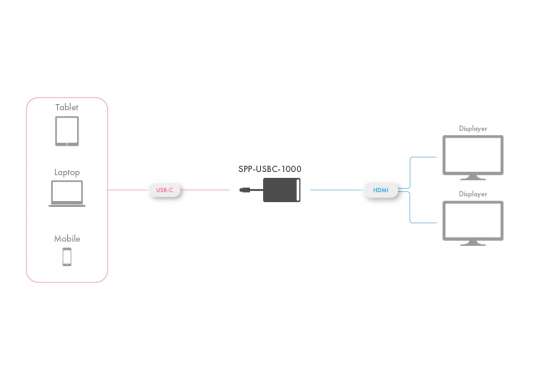

Application Diagram
the SPECIFICATIONS
| Input Ports | Type C X 1 |
|---|---|
| Output Ports | HDMI® 2.0 X2 |
| Chassis Material | Metal |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -30°C to 120°C (-22°F to 248°F) |
| Humidity | 20%~80%RH |
