SPP-USBC-1001

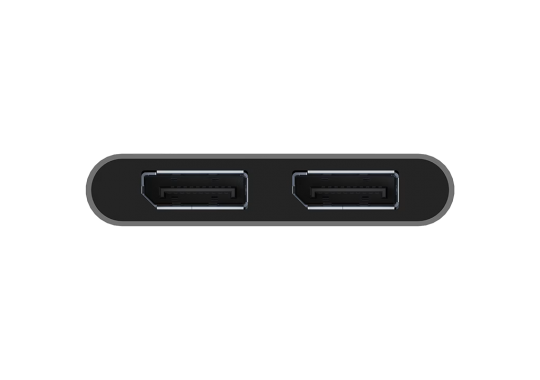

Aegis SPP-USBC-1001 Multi-Function Expansion Adapter converts a single USB-C port into two DisplayPort (DP) interfaces, unlocking the full expansion potential of laptops. Designed for MacBook Pro and various USB Type-C laptops, it delivers seamless 4K DisplayPort ultra-high-definition output and is fully compatible with Thunderbolt 3 technology, transforming your laptop into a powerful professional workstation.Its compact, all-in-one design eliminates the need for multiple cables, making it the perfect companion for mobile professionals. With plug-and-play functionality, it ensures a high-performance and efficient workspace anytime, anywhere.
THE FEATURES
SPP-USBC-1001
◎ Supports Single Stream Transport (SST) or Multi-Stream Transport (MST).
◎ For DP 1.4 source：
– 4K 60Hz resolution for both DP outputs when using 2 displays.
◎ For DP 1.2 source：
– 4K 60Hz resolution for DP output when using 1 display.
– 4K 30Hz resolution for both DP outputs when using 2 displays.
◎ Supports High Dynamic Range (HDR) transmission.
◎ MST mode is not supported on Apple macOS; only mirror mode is available.
Application Diagram
the SPECIFICATIONS
| Input Ports | Type C X 1 |
|---|---|
| Output Ports | DP1.4 X2 |
| Chassis Material | Metal |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -30°C to 120°C (-22°F to 248°F) |
| Humidity | 20%~80%RH |
