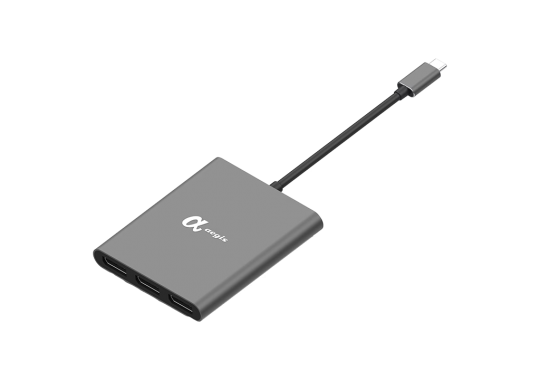

SPP-USBC-1002
Aegis SPP-USBC-1002 Multi-Function Expansion Adapter unlocks comprehensive connectivity for USB-C laptops. With a single USB-C port, it expands to three DisplayPort interfaces, perfectly supporting MacBook Pro and various USB Type-C laptops. It delivers 4K ultra-HD DisplayPort output and is fully compatible with Thunderbolt 3, instantly upgrading your laptop into a professional workstation.Designed with an all-in-one structure, it integrates multiple interfaces, eliminating the hassle of carrying multiple cables—a must-have mobile office solution for business professionals.
THE FEATURES
SPP-USBC-1002
◎ Supports Single Stream Transport (SST) or Multi-Stream Transport (MST) for up to 4 display devices.
◎ For DP 1.4 source：
– 4K 60Hz resolution for single DP output when using 1 display.
– 4K 30Hz resolution for both DP outputs when using 2 displays.
– 1080P resolution for all three DP outputs when using 3 displays.
◎ Supports High Dynamic Range (HDR) transmission.
◎ MST mode is not supported on Apple macOS; only mirror mode is available.
◎ Supports SST and MST modes on Windows systems, allowing users to configure either three identical displays or a three-screen extended mode via the Windows display settings.

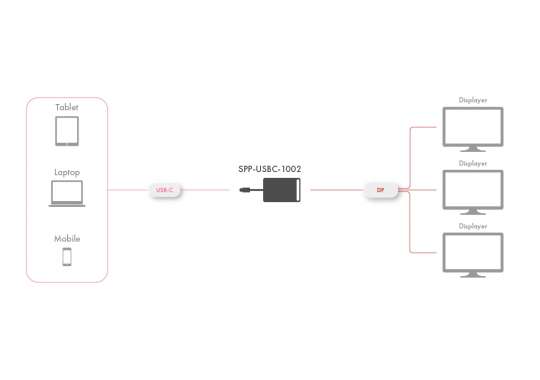

Application Diagram
the SPECIFICATIONS
| Input Ports | Type C X 1 |
|---|---|
| Output Ports | DP1.4 X3 |
| Chassis Material | Metal |
| Operating Temperature | 0°C to 70°C (32°F to 158°F) |
| Storage Temperature | -30°C to 120°C (-22°F to 248°F) |
| Humidity | 20%~80%RH |
