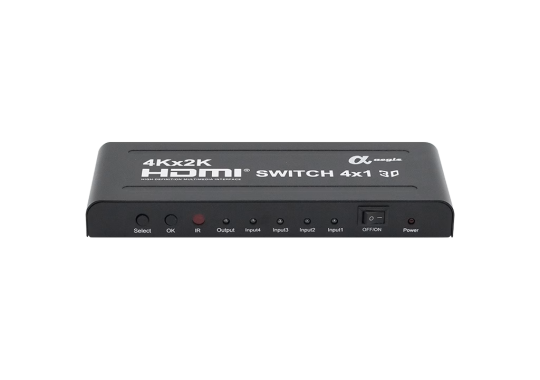

SWT-HDMI-1000
The aegis SWT-HDMI-1000 signal switcher supports lossless switching of four HDMI® input signals to a single display device. Thanks to its smart switching mechanism, all your HDMI® devices—whether it’s a DVD player, gaming console, set-top box, camcorder, or A/V receiver—can be integrated onto this single unit. Equipped with a dual control mode, featuring remote operation and front panel buttons, it allows you to easily switch between multiple video sources. This makes the SWT-HDMI-1000 an ideal solution for both home theaters and professional audio-visual spaces.
THE FEATURES
SWT-HDMI-1000
◎ Support HDMI®1.4b
◎ Supports 3D.
◎ Supports video resolution up to 4K 30Hz.
◎ Supports 3.2Gbps data rate with a TMDS clock up to 320MHz.
◎ Supports 24/30/36-bit deep color.
◎ Supports single HD display from multiple sources like DVD/Blu-ray players, game consoles, set-top boxes, A/V amplifiers.
◎ Supports Picture-in-Picture (PiP) function.
◎ Fast switching between input sources.
◎ Durable metal casing design.

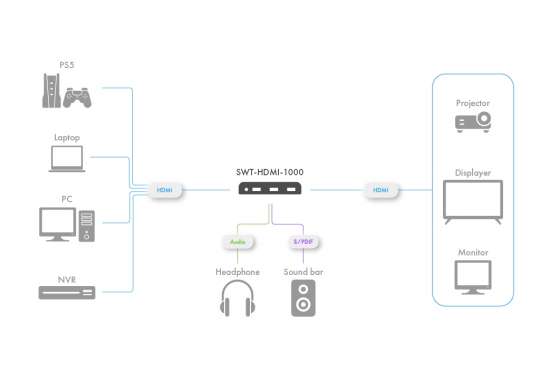

Application Diagram
the SPECIFICATIONS
| HDMI® source input port | 4 |
|---|---|
| Display Device Output Ports | 1 |
| Source Port Connectors | 19 PIN HDMI® |
| Display Device Port Connectors | 19 PIN HDMI® |
| HDCP Compliance | YES |
| Resolution | Up to 3840×2160 |
| Input Video Signal | 0.5-1.0 Volts P-P |
| InputDDCSignal | 5 Volts P-P(TTL) |
| Deep Color | 36 Bit |
| HDMI Version | HDMI1.4b |
| Bandwidth | Up to 320Mhz |
| Data Rate | Up to 3.2Gbps |
| Input Cable Length | 4k2k≤15M HDMI Cable |
| Output Cable Length | 4k2k≤15M HDMI Cable |
| Cable Standard | 26AWG HDMI1.4 |
| Vertical Frequency Range | 60Hz |
| Power Consumption (Max) | 5Watts |
| Operating Temperature | 15℃ to +55℃ |
| Operating Voltage | DC 5V |
| Power Adapter | 5V 1A |
