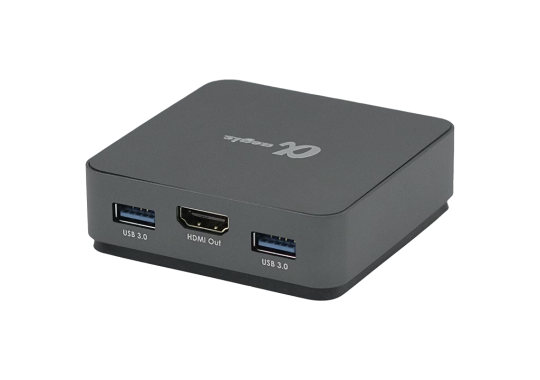

SWT-USBC-1000

Aegis SWT-USBC-1000 KVM Switch integrates dual USB Type-C to HDMI® functionality, allowing users to control two source devices using a single set of keyboard, mouse, and monitor. It supports up to 4K 30Hz resolution output and is fully compatible with Samsung DeX mode, enabling mobile devices to deliver a seamless big-screen workflow experience. Designed with a bus-powered architecture through the Type-C interface, it eliminates the need for an external power supply. Combined with plug-and-play functionality, it offers exceptional portability and ease of use. The device includes a built-in USB 3.2 Gen 2 hub, supporting 10Gbps high-speed data transfer and backward compatibility with USB 3.1 Gen 1, USB 2.0, and USB 1.1 standards. This enables efficient sharing of USB peripherals between two Type-C devices, providing a highly effective resource management solution.

DOWNLOAD BROCHURE / DATASHEET

THE FEATURES

SWT-USBC-1000

◎ Dual USB Type-C to HDMI® output with KVM functionality, compatible with laptops and mobile devices.
◎ Supports up to 4K resolution.
◎ Bus-powered, plug-and-play operation without an external power adapter.
◎ Supports Samsung DeX mode.
◎ Supports Apple iPad Pro.

* For other mobile devices with DP Alt Mode, only screen mirroring is supported.

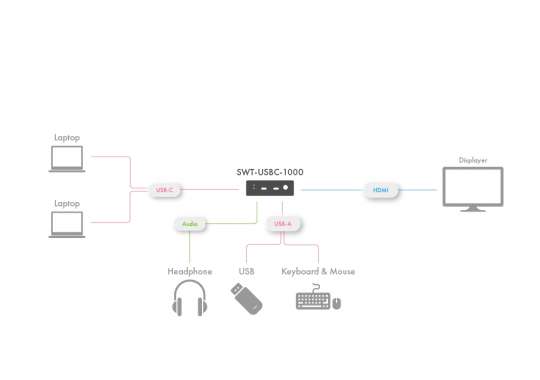

Application Diagram

the SPECIFICATIONS

Model

SWT-USBC-1000
Model Name

Dual C to HDMI® with KVM
Supported Resolutions

480P/720P/1080P 24Hz/30Hz/50Hz/60Hz, up to 4K 30Hz, Supports 1080P 120Hz,/3D etc.
Computer

2x USB 3.2 Type-C Female
Device

2x USB 3.0 Type-A Female
HDR Support

YES
Output line length

HDMI®:4K/AWG 30 ≤2m,USB3.2-1m
Port Selection

Push Button
LED Indicator Light

Selected 2 (Green)
Maximum Power Consumption

7.5W
Operating Temperature Range

-5 ~ +40℃
Operating Humidity Range

5 ~ 85%RH（No Condensation）
Storage Temperature

-15 to 55℃
Storage Humidity

5 ~ 95%RH(No Condensation)
Dimensions

77.95 x 77.95 x 23.8 mm
Weight

160g
Accessories

User manual x 1, Type-c cable 9 cm x 1
