TAP-AV-1004

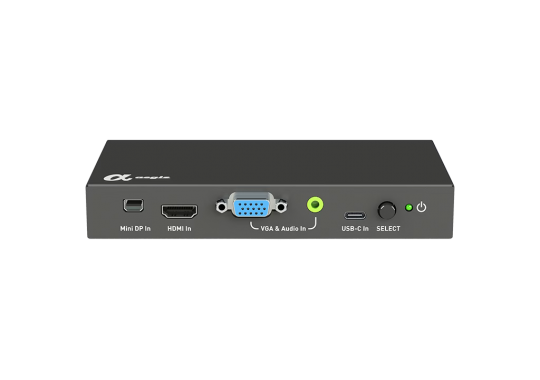

Aegis TAP-AV-1004 is a compact multi-signal converter supporting four input signals: VGA (with 3.5mm audio), Mini DisplayPort, HDMI®, and USB-C, all converted to HDMI® output. The system supports 4K 60Hz high resolution and features smart source auto-detection, automatically recognizing the most recently connected signal source. Users can also manually switch between signals using the control button. This desktop signal converter, with its simple and practical design, provides users with a convenient audio-visual integration solution.
THE FEATURES
TAP-AV-1004
◎ Supports four different input sources, including VGA + 3.5mm audio, Mini DisplayPort, and HDMI®, converting them into an HDMI® output.
◎ Features automatic source detection and manual switching capabilities.
◎ Supports HDMI® output resolution up to 4K 60Hz.

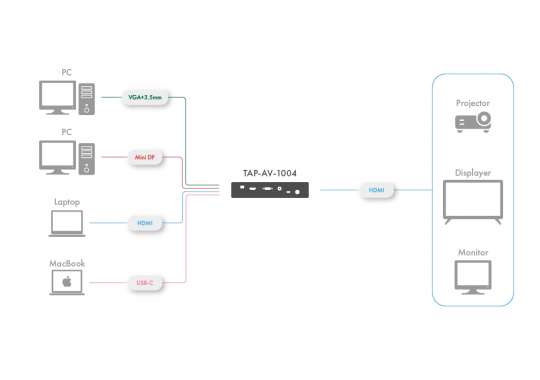

Application Diagram
the SPECIFICATIONS
| HDMI® Bandwidth | 600MHz / 18.0Gbps |
|---|---|
| HDMI® Output Resolution | 480P,720P,1080P/24,30,50,60Hz, 4Kx2K/24,30,60Hz. |
| Audio Format | PCM 2 Channel at 48KHz |
| High-Fidelity Audio Encoding | 2.2 |
| Input Ports | Mini DisplayPort X 1 HDMI® 2.0 X 1 VGA X 1 Audio X 1 -3.5mm Stereo Jack USB 3.1 C X 1 |
| Output Ports | HDMI® 2.0 X1 |
| Control Ports | Select button X 1 – |
| Power Supply | 24VDC / 1.5 Amp |
| Power Consumption | 36 W – Max. |
| Chassis Material | Metal |
| Operating Temperature | 0℃ – 40℃ / 32℉ – 104℉ |
| Storage Temperature | -15℃ – 55℃ / 5℉ – 131℉ |
| Humidity | 5 – 85% RH (Non-Condensing) |
| Dimensions ( L × W × H ) | 6.1 in (155 mm) X 3.1 in (80 mm) X 0.9 in (24 mm) |
| Weight | 360 g |
