TAP-AV-1005
The aegis TAP-AV-1005 4K Table Converter is a professional-grade multi-functional AV switcher, featuring three HDMI® inputs and one USB 3.0 Type-C input, supporting both single-screen and multi-screen split display.Utilizing HDBaseT technology, it extends 4K@30Hz signals up to 100 meters and 1080P signals up to 150 meters. The device includes an intuitive touch panel, dual audio output ports, PD fast charging, and a universal power outlet.With front and rear audio output ports, it allows seamless connection to headphones, speakers, or amplifiers. Its sleek brushed-metal finish and versatile installation options make it an ideal AV integration solution for professional environments.
THE FEATURES
TAP-AV-1005
◎ Three HDMI® and one Type-C input interface, with one HDMI® (HDMI® 1.4) output interface.
◎ Seamless, zero-latency switching between different input sources.
◎ Supports HDMI® and HDBaseT simultaneous output.
◎ Supports HDBaseT protocol using Cat.5e network cable to extend signals up to 100 meters for 4K 30Hz resolution and up to 150 meters for 1080P resolution.
◎ Provides a USB 3.0 Type-C (PD 45W) charging port.
◎ Supports PoC (Power over Cable) for HDBaseT.
◎ Maximum resolution of 4K 30Hz (4:4:4).
◎ Supports both automatic source detection and manual touch control switching.
◎ Can be embedded into a desktop or wall.
◎ Supports quad-split screen display.
◎ Features audio control and resolution adjustment.

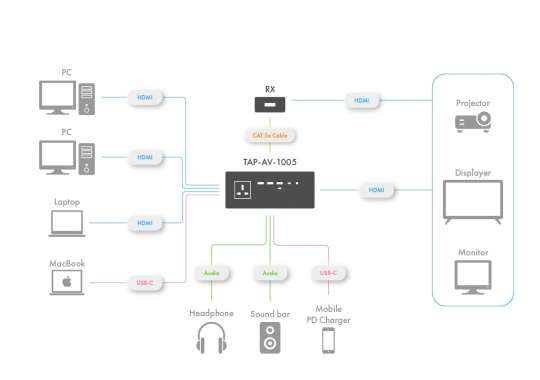

Application Diagram
the SPECIFICATIONS
| Video Output | RJ45(For HDBaseT),HDMI(Local Out) |
|---|---|
| HDMI® Resolution | 480P/720P/1080P@24Hz/30Hz/50Hz/60Hz,up to 4K@30 |
| HD Base TResolution | 480P/720P/1080P@24Hz/30Hz/50Hz/60Hz,up to 4K@30 |
| Video resolution | 720P50/60Hz ,1080P50/60Hz, 4K2K24Hz,4K2K30Hz,4K2K@50/60Hz (4:4:4) |
| HD Base TTransmission Distance | 4K30 100M,1080P up to 150M |
| HDMI®Audio format | Dolby True HD/DTS HD/Dolby Atoms/ Dolby Digital 5.1 / Dolby Digital Plus/ DTS 5.1/LPCM |
| HDMI® Audio Output | Phoenix 3.81mm/Phone jack 3.5mm |
| Power Adapter | Power Delivery Max.45W |
| Frequency | 297MHz |
| Bandwidth | 6Gbps |
| Output Cable Length | 4K/AWG 30 ≤2m |
| Transmission Distance | 4K/Cat5e 100M,1080P Cat5e up to 150M |
| Power Specifications | AC 100~240V; HD Base T PoC |
| Operating Temperature | -5°C ~ 40°C |
| Humidity | 5~85% RH (non-condensing) |
| Dimensions | 270mm(W)×110mm(D)×63mm(H) |
| Weight | 2300g |
