ARECast Wireless Projection Button
Product Highlights
- Audio/Video Source Capture and Transmission through Wireless Environment
- Working with AREC LS-860/LS-860N Media Station, ARECast makes it easy to capture presentation content for recordings and sharing
- Easy Control of Start/Stop Wireless Transmission with One Press of the Button
THE FEATURES

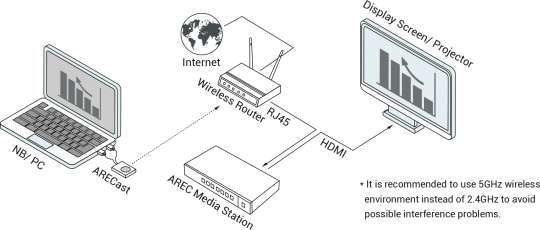

Configuration Diagram
Its Is recommended to use 5 GHZ wireless environment instead of 2.4 GHz to avoid possible interference problems.
the SPECIFICATIONS
| Spec/ Model | ARECast |
|---|---|
| Interface | HDMI: audio/ video data capture |
| HDMI Capture Resolution | Up to 4K / 60p |
| Encode Resolution | 1920 x 1080 30p |
| Audio Sample Rate | 48KHz |
| Button Features | Press once to start/ stop transmission |
| Wireless Transmission Protocol | IEEE 802.11ac (2.4/5GHz) |
| Wireless Effective Distance | 30m |
| Supported Operating Systems | Windows 10 (OS build: 19042 or above) |
| Dimensions | 80(L) x 64(W) x 24(H) mm |
| Weight | 75g |
