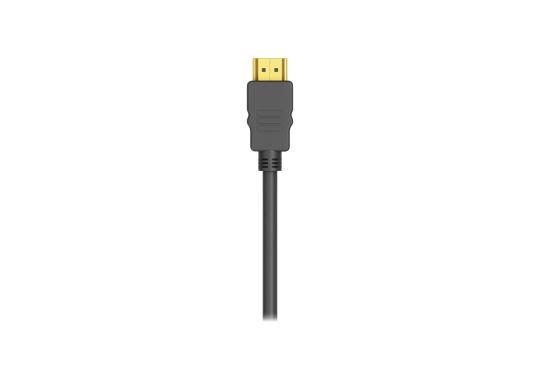

CAP-HDMI®-100x (HDMI® 2.0)
Aegis CAP-HDMI®-100x series cables deliver impressive 4K 60Hz video with bandwidth up to 18Gbps. These cables feature durable black PVC jacket and metal braided shielding for superior signal protection, along with VW-1 fire safety rating. They are compatible with various HDMI® devices including 4K TVs, Blu-ray players, gaming consoles, computers, making them an ideal choice for high-definition connectivity.
* Cable Length
CAP-HDMI®-1003：1m
CAP-HDMI®-1004：2m
CAP-HDMI®-1005：3m
THE FEATURES
CAP-HDMI®-100x (HDMI® 2.0)
◎ Supports HDMI® 2.0 standard.
◎ Supports ultra-high resolution video up to 4K 60Hz.
◎ Stable and smooth transmission with 18Gbps high bandwidth.
◎ Supports CEC extended functions.
◎ Supports HDMI® Ethernet Channel (HEC).
◎ Supports 32 audio channels and 4 audio streams.
◎ Supports Audio Return Channel (ARC).
◎ Uses VW-1 cable grade with excellent fire safety characteristics.
◎ Features 24K gold-plated connectors for oxidation resistance and durability, ensuring stable and reliable signal transmission.

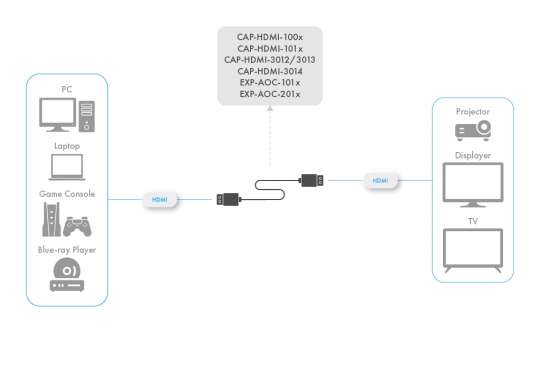

Application Diagram
the SPECIFICATIONS
| Video Input | HDMI® Type-A |
|---|---|
| Video Output | HDMI® Type-A |
| Video Version | HDMI® 2.0 |
| HDCP | Compatible with HDCP 2.2/1.4 |
| DDC | Supports DDC2B and EDID auto-detection Maximum Transmission Bandwidth |
| Maximum Transmission Bandwidth | 18G, Deep Colors 12bit, HDR, BT2020 |
| Maximum Digital Resolution | 4K60Hz |
| Audio Specifications | Supports 32 audio channels |
| Connector Plating | 24K gold-plated |
| Cable Outer Material | Black PVC, compliant with RoHS standards |
| Cable Shielding Material | Aluminum-magnesium braid |
| Cable Gauge | 30AWG |
| Cable Length | 1M~3M |
| Cable Outer Diameter | 6.0mm |
| Warranty | 2 Year |
