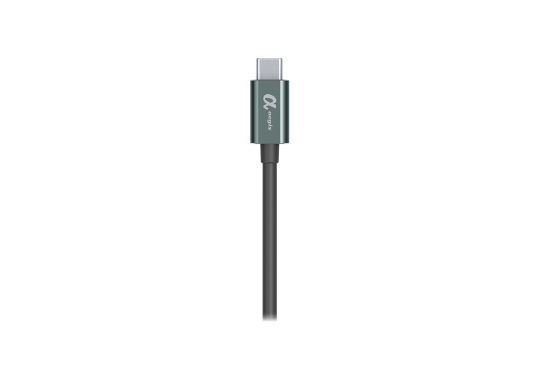

CAP-MICB-100x (TypeC to MicroB)
Aegis CAP-MICB-100x is a 2-meter cable featuring USB Type-C to Micro USB connectivity. The USB Type-C end is reversible, while the Micro USB end can connect to mobile devices or power banks. This cable complies with USB Association specifications and supports OTG functionality (smartphone must be OTG-compatible), allowing simultaneous data transfer and charging.Features an anodized aluminum alloy housing that resists oxidation. The cable incorporates additional metal braiding to protect the core wires from breakage and enhance interference resistance. The outer jacket is made from eco-friendly, non-toxic, and odorless materials for safe and worry-free use.
* Cable Length
CAP-MICB-1000：1m
CAP-MICB-1001：2m
THE FEATURES
CAP-MICB-100x (TypeC to MicroB)
◎ This product features a USB-C connector: Reversible design ensures easy plugging without damaging your devices.
◎ Stylish and durable: Made with an anodized aluminum alloy casing, resistant to oxidation and rust.
◎ Stable current: Supports up to 3A high current.
◎ Dual functionality: Combines charging and data transfer, compliant with USB-IF standards.
◎ Eco-friendly and non-toxic materials: Safe and worry-free for everyday use.

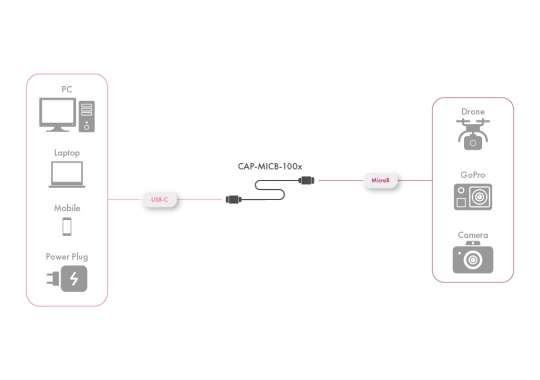

Application Diagram
the SPECIFICATIONS
| Input Type | USB Type-C |
|---|---|
| Output Type | Micro USB-B |
| Transfer Speed | USB 2.0（480Mbps） |
| Compatibility | Backward compatible with USB 2.0/1.0 |
| Operating System Support | Windows/ macOS |
| Connector Plating | Nickel-Plated Connectors |
| Cable Jacket Material | PVC |
| Cable Type | Copper Wire Construction |
| Cable Outer Diameter | OD4.5mm |
| Power | 5V/3A-15W |
| Cable Length | 1M / 2M |
| Operating Temperature | 0°C to 55°C (32°F to 122°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Warranty | 2 Year |
