DS-H2U UVC HDMI 4K Capture 4K HDMI to USB 3.0 Video Capture Device
Product Highlights
- 4K HDMI 2.0 to USB Type-C
- Video Capture Resolution up to 4K@30fps and 1080P@120fps
- 3.5mm Mic-in Mixed with HDMI Audio and 3.5mm Audio Line-out
- Supports 4K HDMI Loop-through and HDMI to USB-C Capture
- Compatible with Media Players (AMCap, Pot Player, VLC…etc.), Streaming Software (OBS, vMix, Wirecast…etc.), and Conferencing Software (Microsoft teams, Google Meet, Zoom…etc.)
THE FEATURES

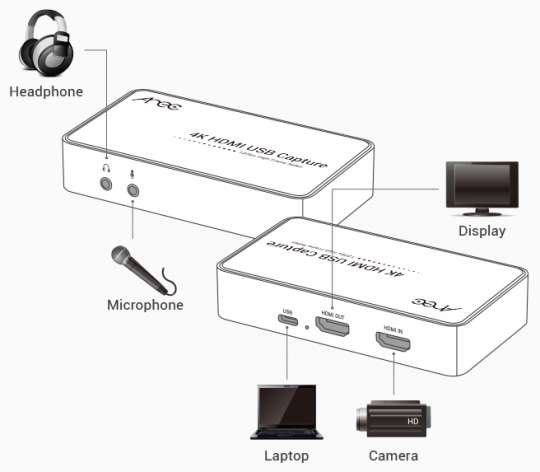

Robust Connectivity with HDMI Loop-through
DS-H2U is a plug-and-play 4K HDMI to USB-C video capture device. It brings professional connectivity across HDMI and USB-C in a high-quality video to your laptop or PC. With 3.5mm phone jack audio input/output and HDMI loop-through design, DS-H2U can play 4K HDMI source on local display.

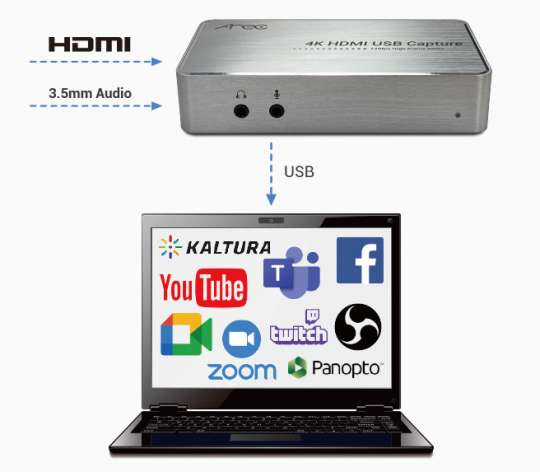

Software Compatibility with High Frame Rates
DS-H2U supports Windows, Mac OS, and Linux operating systems. It is compatible with a wide range of software for multiple applications without any driver to install. DS-H2U provides aspect ratio, deinterlacing, up/down scaling, and frame rates up to full HD 120fps and 4K UHD 30fps, making the content smoother and meeting the needs of diverse applications.
Professional Audio-Visual Applications
the SPECIFICATIONS
| Model Name | DS-H2U |
|---|---|
| Role of usage | 4K HDMI USB Capture |
| Input Video bandwidth | 600MHz |
| Output bandwidth | Up to 350Mbps (USB-C) |
| Video support(USB-C) | Up to 4K@30/1080P@120 |
| Video support(Loop-out) | Up to 4K@60 |
| Input | 1x HDMI+ 1x 3.5mm |
| Output | 1x USB-C + 1x HDMI + 1x 3.5mm |
| HDMI connector | Type A [19-pin female] |
| USB connector | USB 3.1 Type C (SuperSpeed USB) |
| OS Support | Windows 7 /8.1 /10, Mac and Linux OS |
| Dimensions [L x W x H] | 116 x 63 x 23mm |
| Weight | 168g |
| Power supply | Via USB-C |
| Power consumption | 3.5 Watts [max] |
