DS-MT1 HDMI 2.0 over IP Multicast Transceiver System

Product Highlights

  • A Complete Ultra-HD 4K@60(4:4:4) Video Solution for Many 4K Requirement Applications, such as Medical Care, Digital Signage, etc.
  • Able to be configured as a full duplex transmitter and receiver
  • Transmission Distance up to 100m (330ft) [CAT.6A], 300m (990ft) [OM3] or 400m (1320ft) [OM4] based on 10 Gigabit Switch with 802.1Q VLAN Function.
  • Supports Bi-directional IR, RS-232, Video Extender/Extractor, USB, and Video Wall Support.
  • 3 Broadcasting Configuration Options: Point-to-Point, Point-to-Many, or Many-to-Many.

THE FEATURES

  • Supports HDR and up to 4K@60 4:4:4
  • HDCP & CEC Bypass
  • Supports EDID management
  • Able to be configured as a full duplex transmitter and receiver
  • Slide switch to select transmission over 10G copper RJ45 or SFP
  • Auto equalization
  • Pure unaltered uncompressed 7.1ch digital HDMI over cat.6A/fiber transmission
  • DTS-HD Master Audio and Dolby TrueHD high bit rate audio support
  • Supports bi-directional full frequency IR signal from 20KHz to 60KHz
  • Bi-directional Analog audio path-through
  • Full duplex RS-232 control up to 115,200 bps
  • Cat.6A/fiber extension and connection to a 10GbE Ethernet Switch which supported IGMP version 2
  • Supports software to configure & upgrade device and to control the switching operation of the various signal types
  • Supports seamless switching
  • Supports Video Wall & Multi-view function
  • Supports custom scaling to display

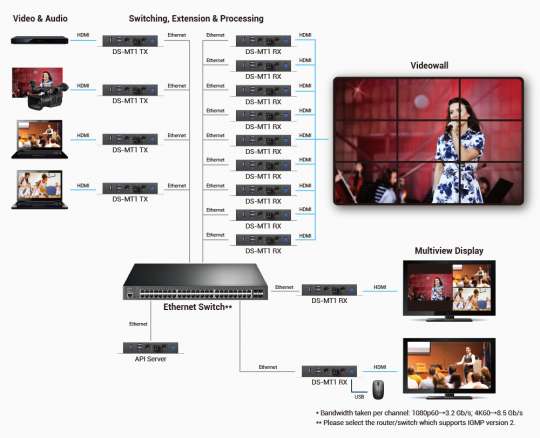

Video & Audio

  • Bandwidth taken Per Channer: 1080p60 --> 3.2 Gb/s, 4K60 --> 8.5 Gb/s
  • Please select the router / switch supports IGMP version 2

the SPECIFICATIONS

Model Name

DS-MT1
Role of usage

Transceiver
HDMI compliance

HDMI 2.0a
Video bandwidth

Single-link 594MHz [18Gbps]
Video support

480i / 480p / 720p / 1080i / 1080p60 / 4K2K@30 / 4K2K@60 4:4:4
HDMI over UTP

4K2K@60 4:4:4 100m (330ft) [CAT.6A]
HDMI over fiber

4K2K@60 4:4:4 up to 300m (990ft) [OM3] / 400m (1320ft)[OM4]
[multi-mode optic cable]
Audio support

Surround sound [up to 7.1ch] or stereo digital audio
I/O connector

2x HDMI + 4x 3.5mm + 3x USB (1.1/ 2.0) + 1x Micro USB + 2x RJ45 + 1x fiber + 1x RS-232
HDMI source control

Controllable via IR pass-through from RX to TX or TX to RX with IR extenders
Dimensions [L x W x H]

172 x 162 x 30mm [6.7" x6.3" x1.2"]
Weight

685g[1.5 lbs]
Power supply

12V DC
Power consumption

18 Watt [max]
